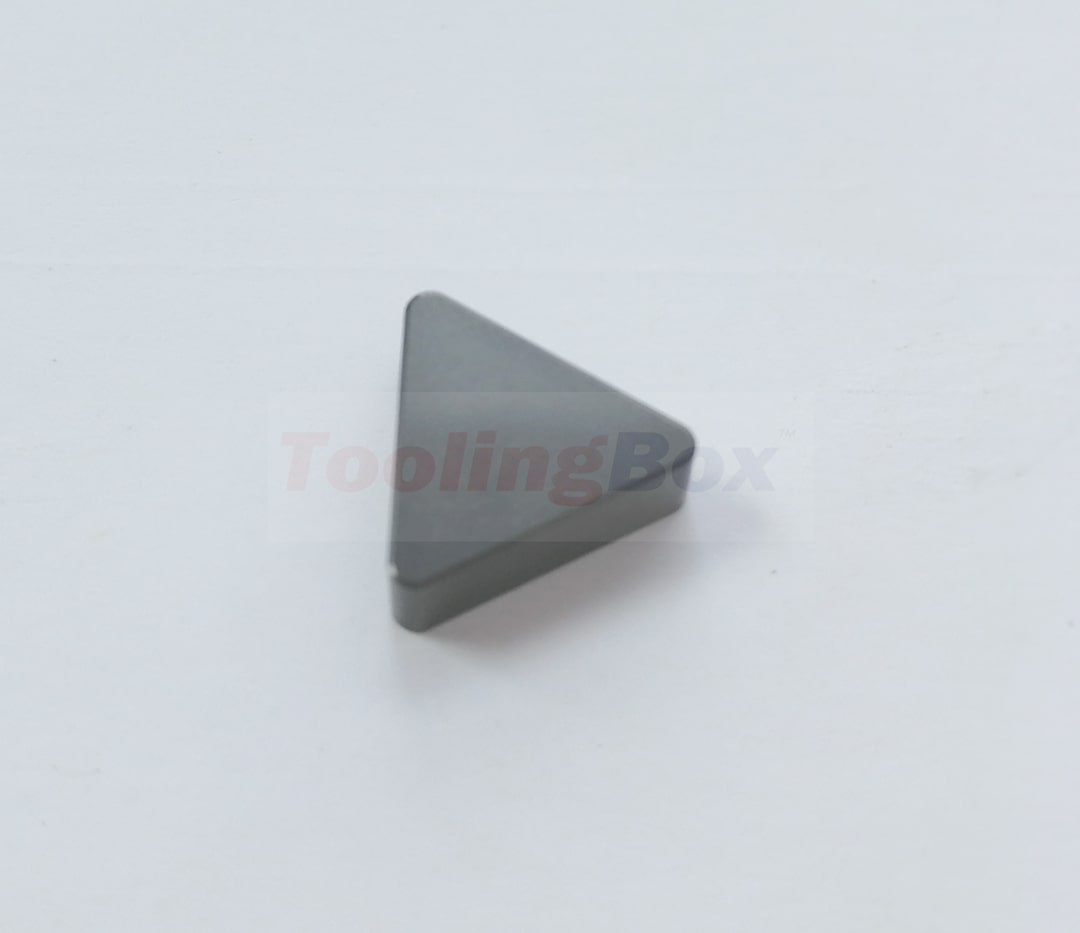

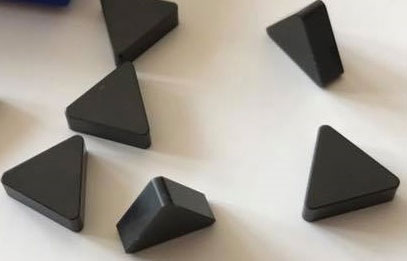

  • solid cbn insert TNGN1604
  • solid CBN insert TNGN110308

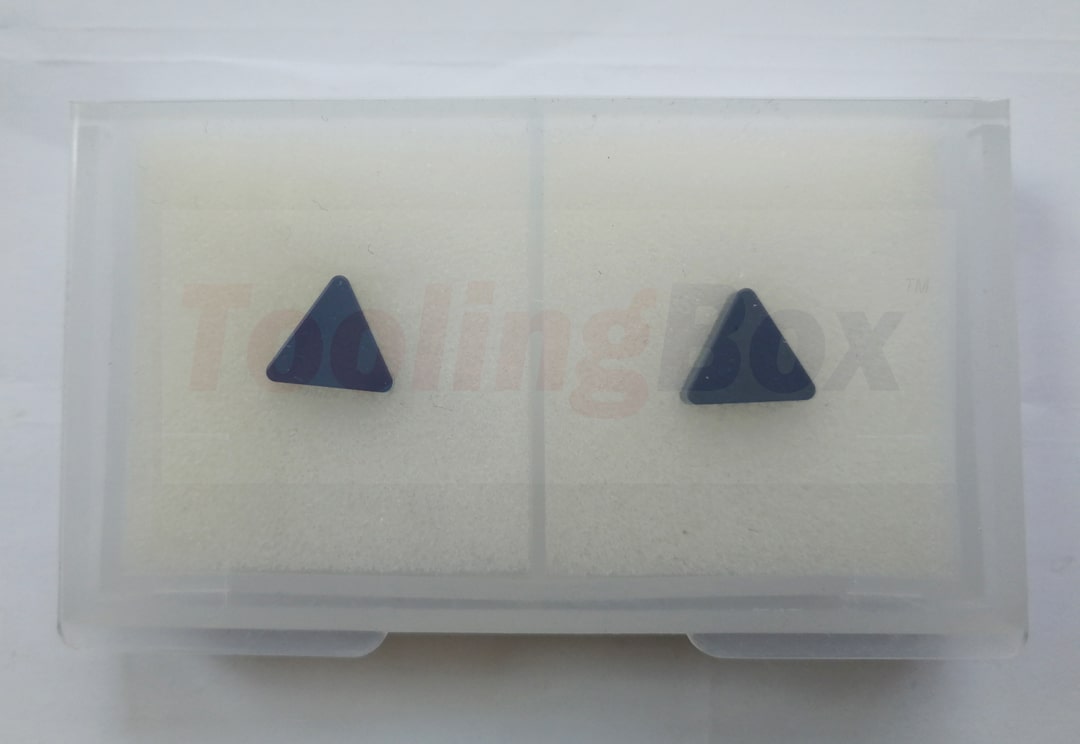

  • Solid CBN insert TNMN1103 TB100 for brake disc turning

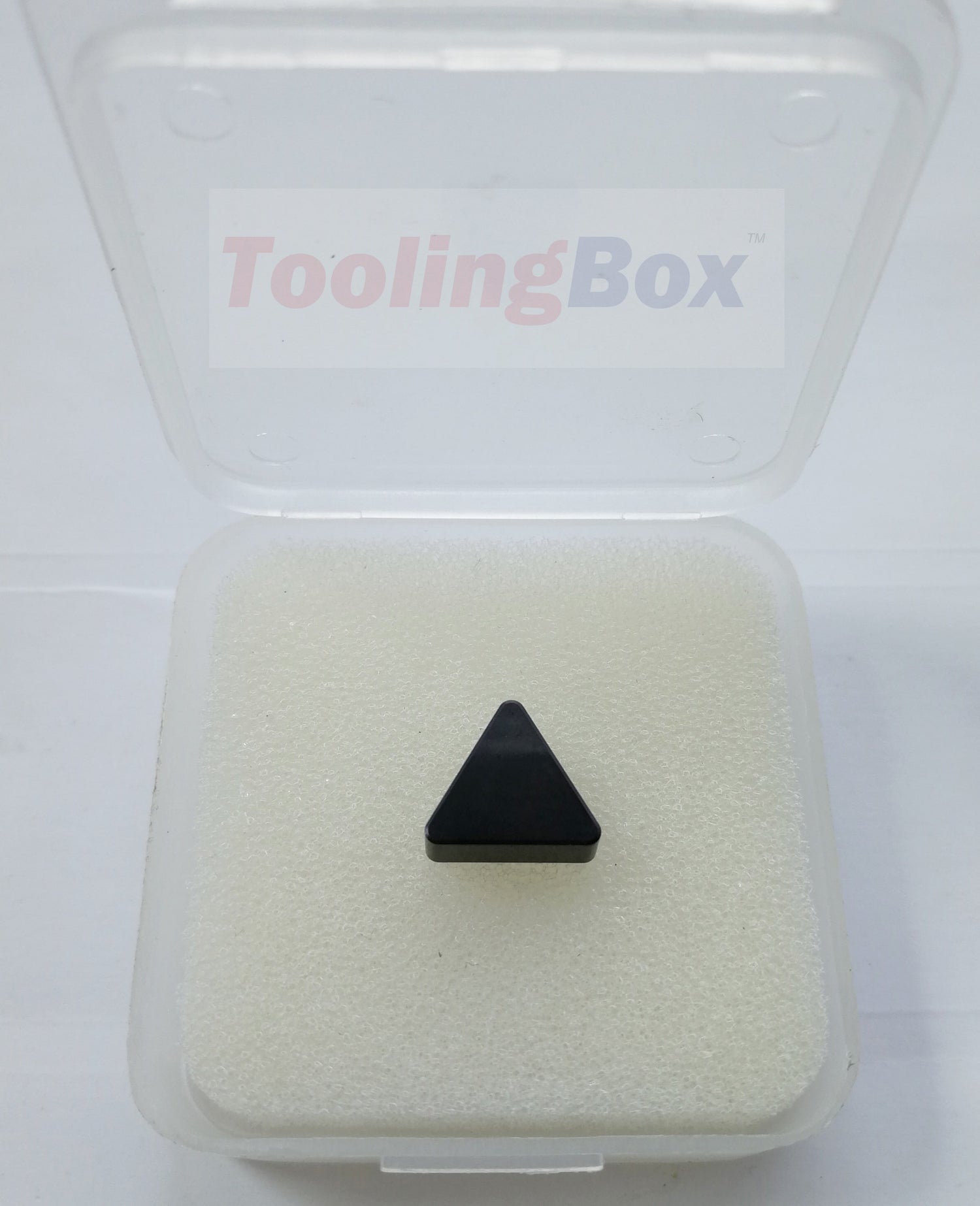

  • packing of solid CBN insert TNGN1604

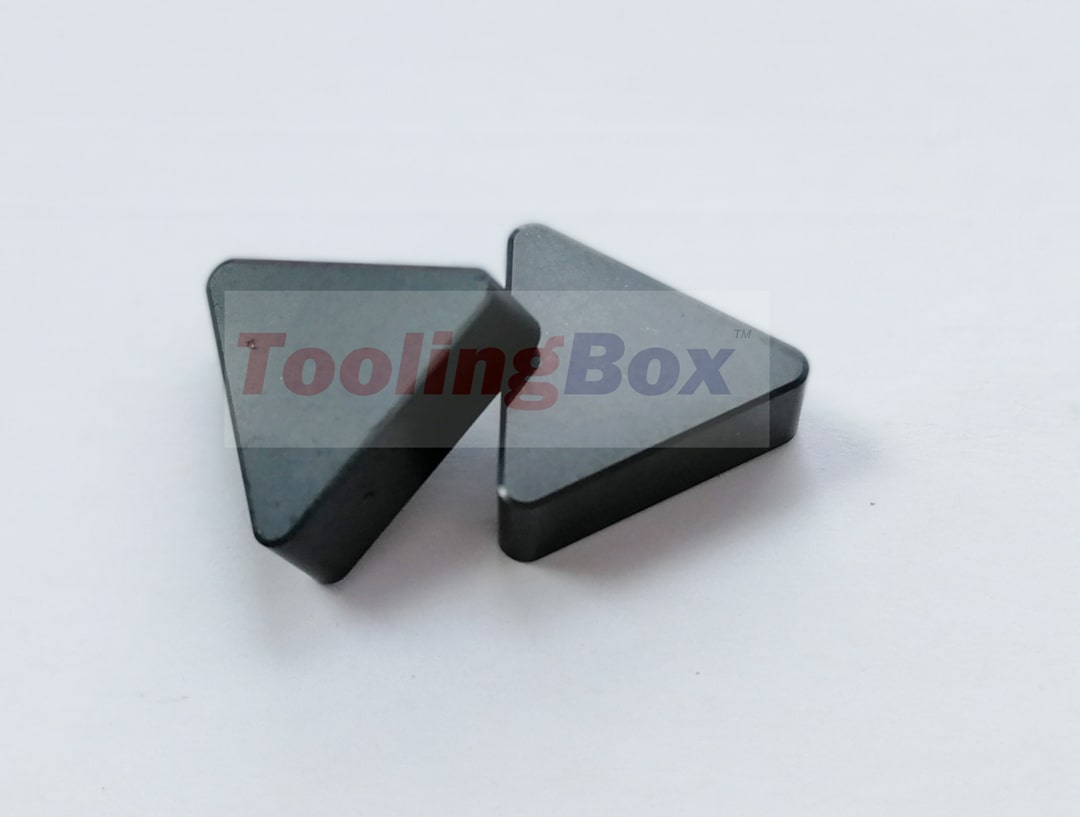

  • packing of solid CBN insert TNGN160408

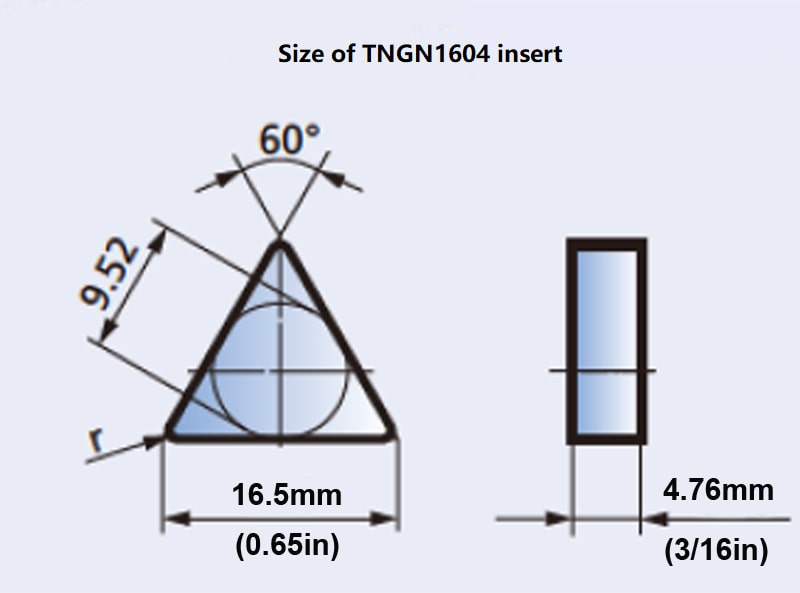

  • size of TNGN1604 insert
1 of 6


Solid CBN insert TNGN1604 TB100 for gray cast iron milling

Regular price
$29.90 USD
Regular price
Sale price
$29.90 USD
Shipping calculated at checkout.
  • ISO size of the insert: TNGN1604XX
  • CBN material grade: TB100
  • cutting edge counts: 6
  • Triangle side length:16.5 mm (0.65in)
  • Insert thickness:4.16mm(3/16in)
  • Fitting milling cutter type : 90° milling cutters
  • Application: Grey cast iron
  • machining process:   Rough

CBN(Cubic Boron Nitride) grade TB100 is specially designed by ToolingBox (Beijing) Industrial Technology Co.,Ltd for cast iron machining with high-speed, such as normal gray cast iron, engine cylinder and cover etc, with 88-94% pure PCBN content (8-12um particle size) in a metallic based binder which greatly helps in dissipating heat.

This CBN material can produce as good or better tolerances than conventional grinding with longer tool life and machining efficiency.

Revolution for milling cast iron material, recommended cutting data:

Vc up to 800m/min;

Fz up to 0.5;

Ap up to 2-4mm;

Better tool life with high effectiveness. Please visit us for more details via www.
