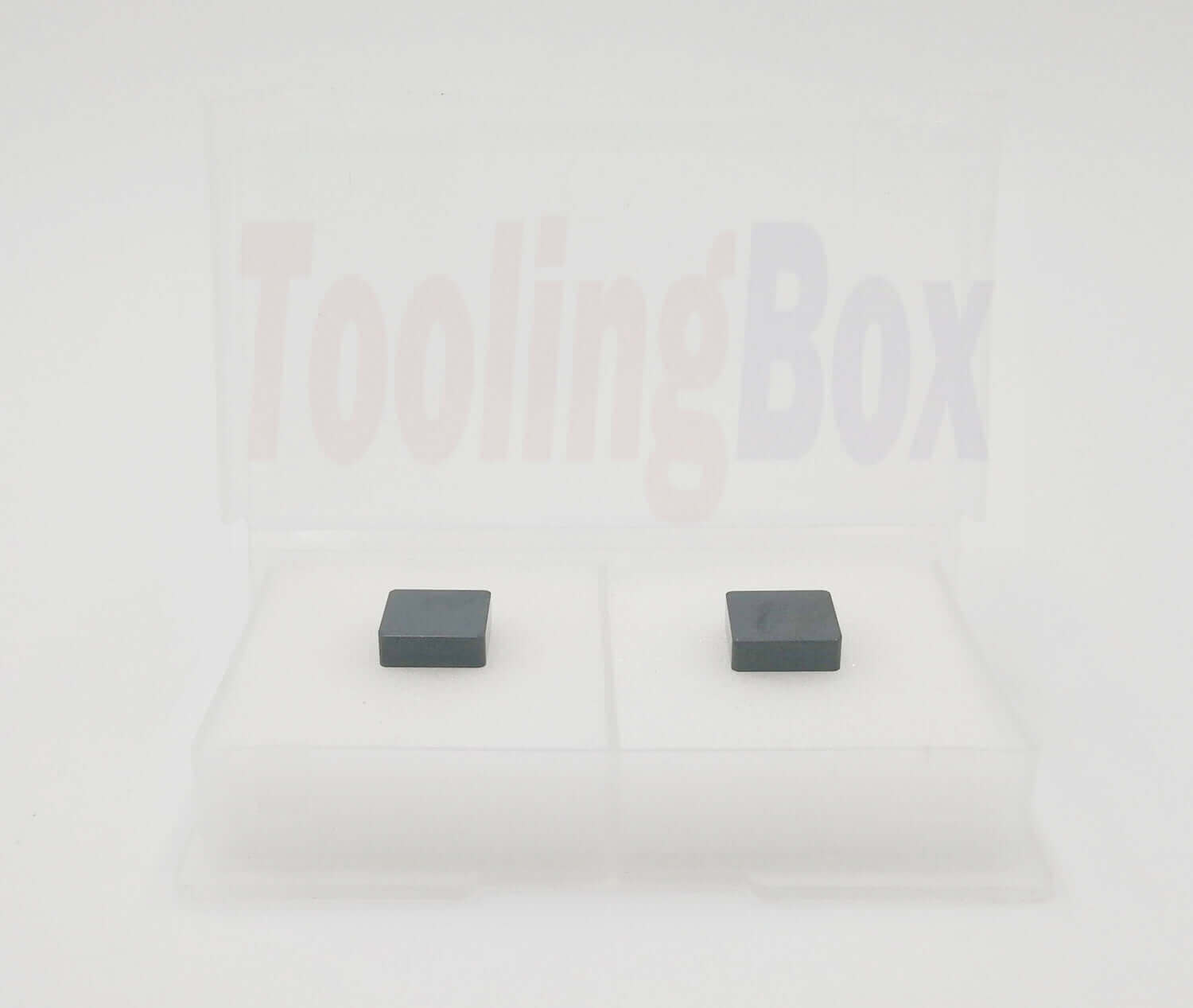

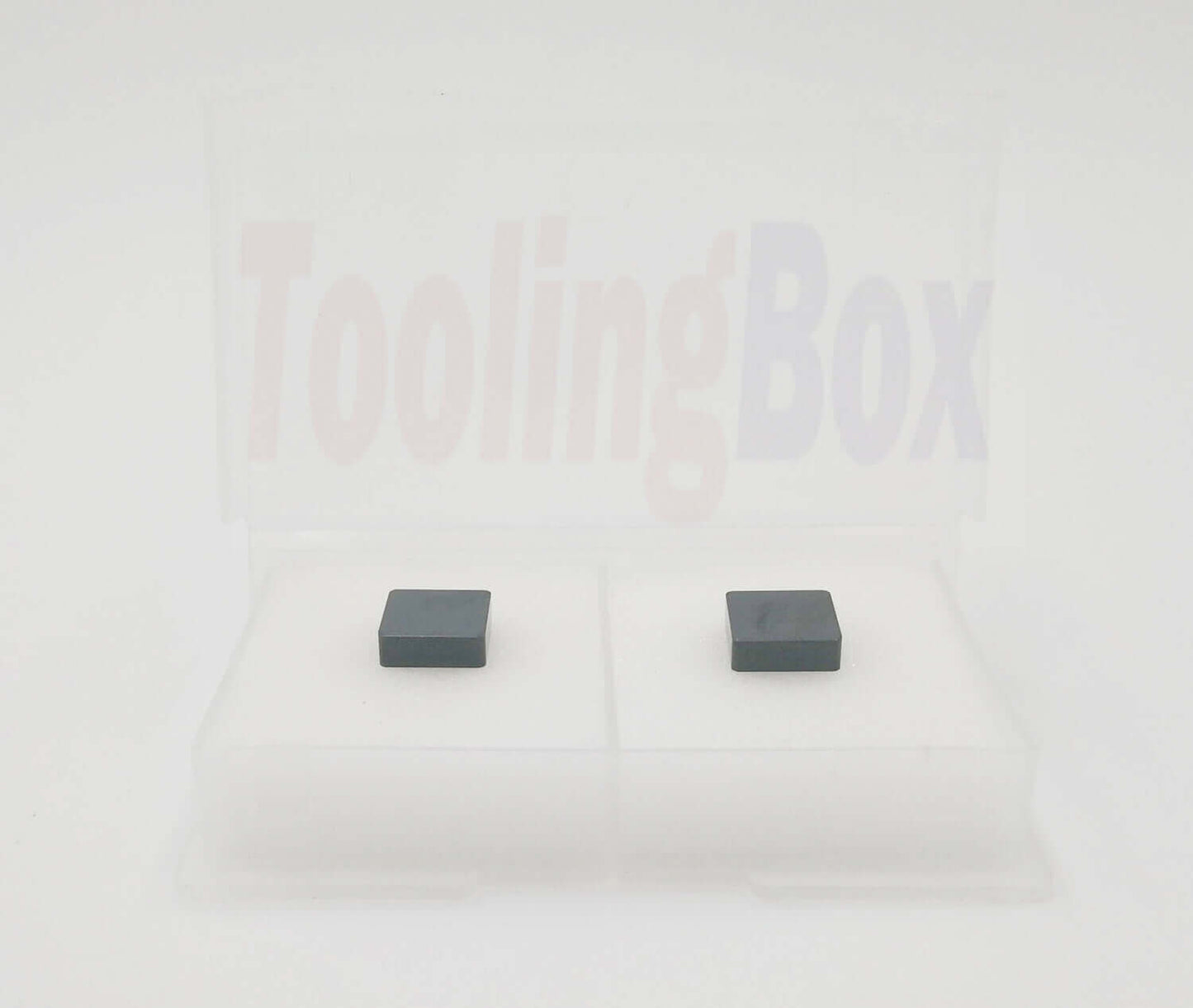

  • 2 pcs Packing of SNEN0903ENS-M08 TB100
  • SNEN0903ENS-M08 TB100

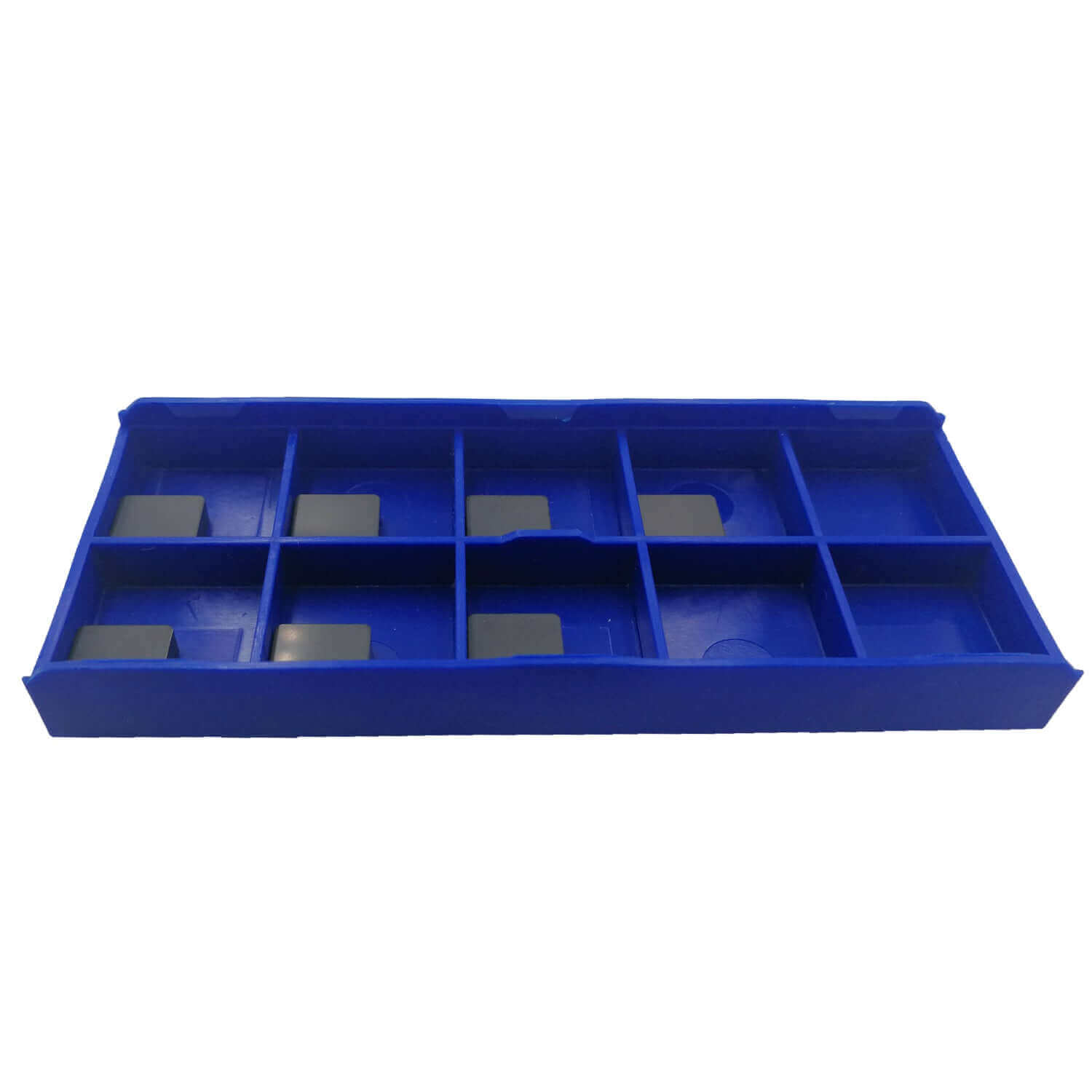

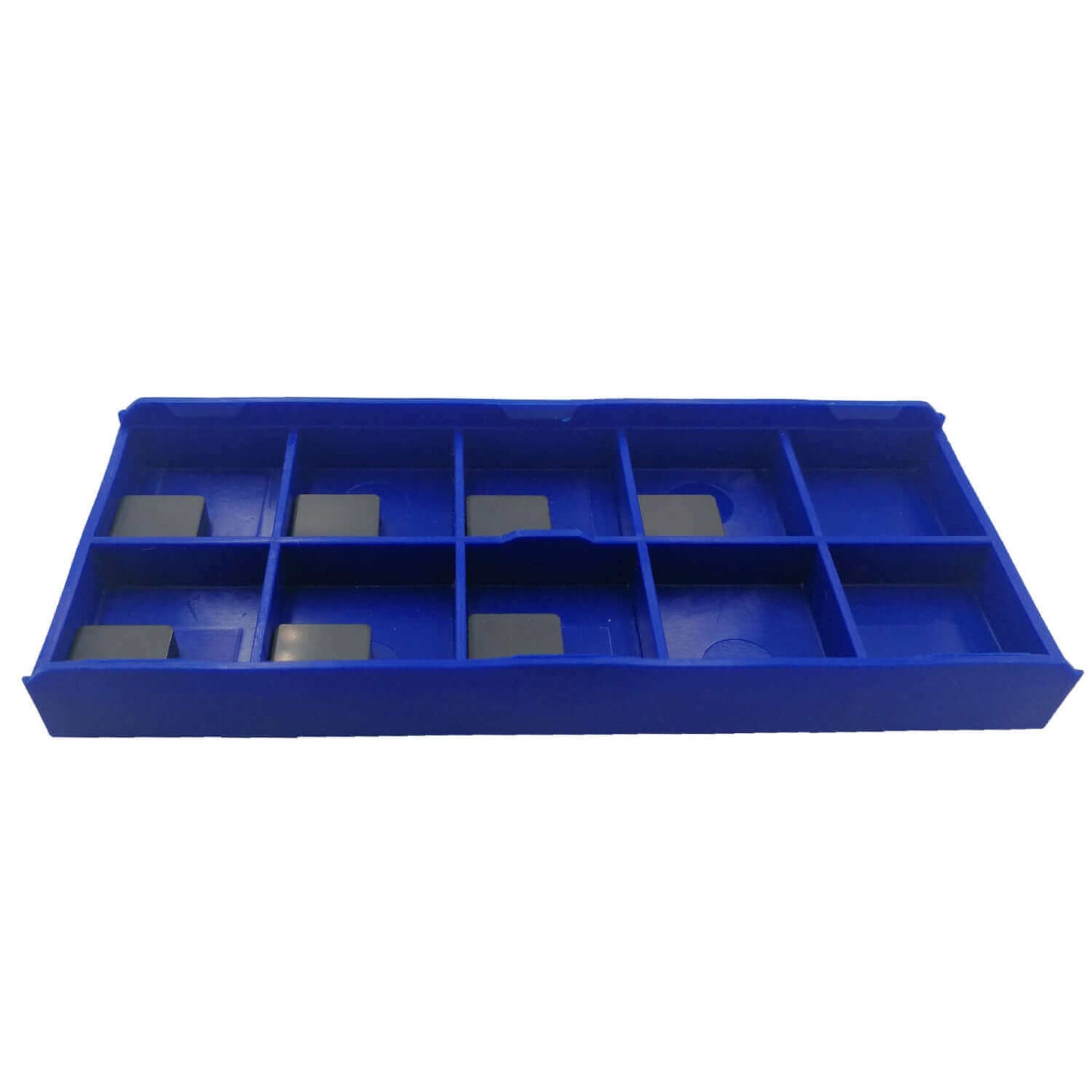

  • 10pcs packing of SNEN0903ENS-M08 TB100 for SECO milling cutter
  • ToolingBox Solid CBN insert SNEN0903ENS-M08 Seco milling cutter_220.74
1 of 5

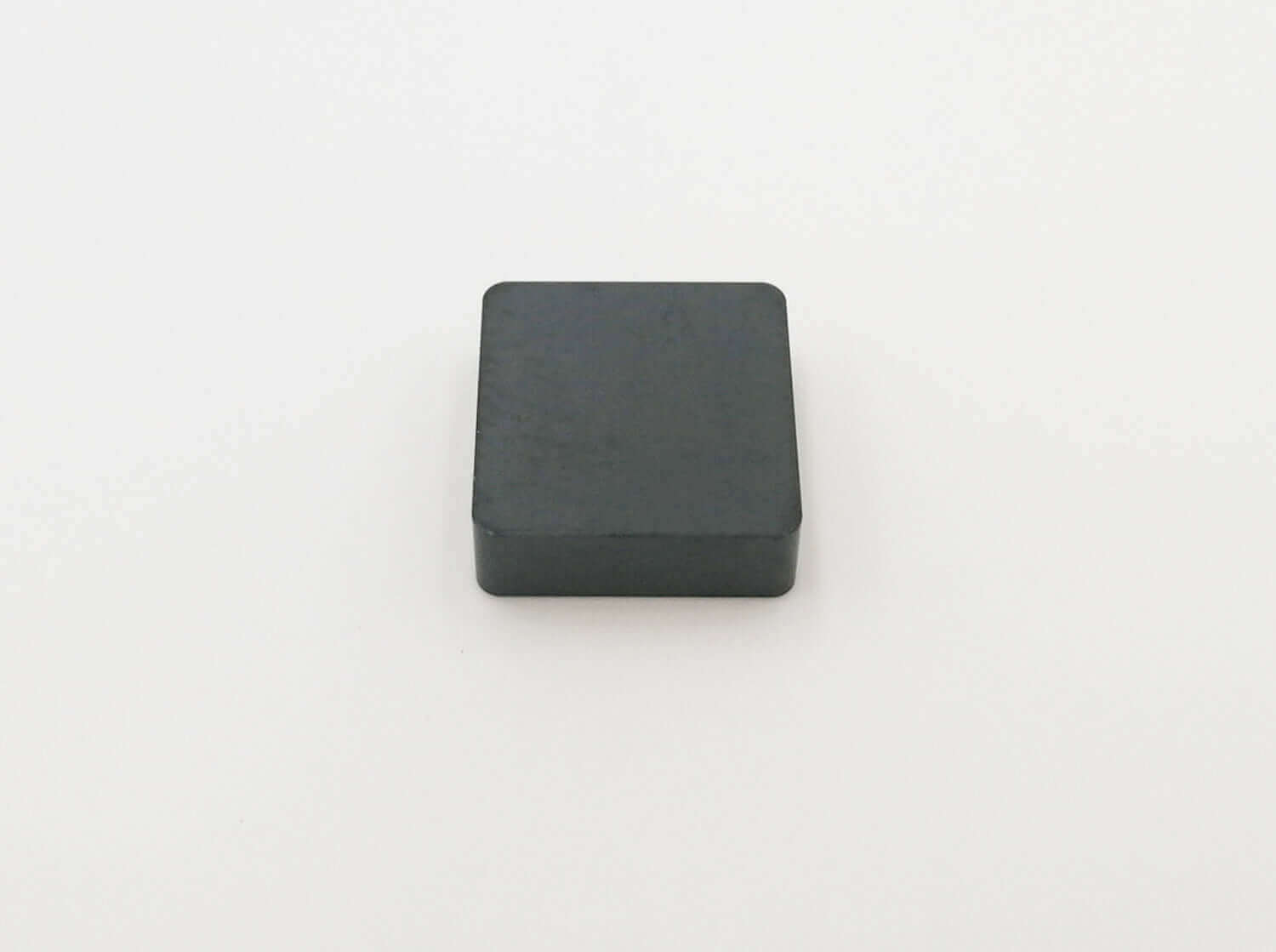

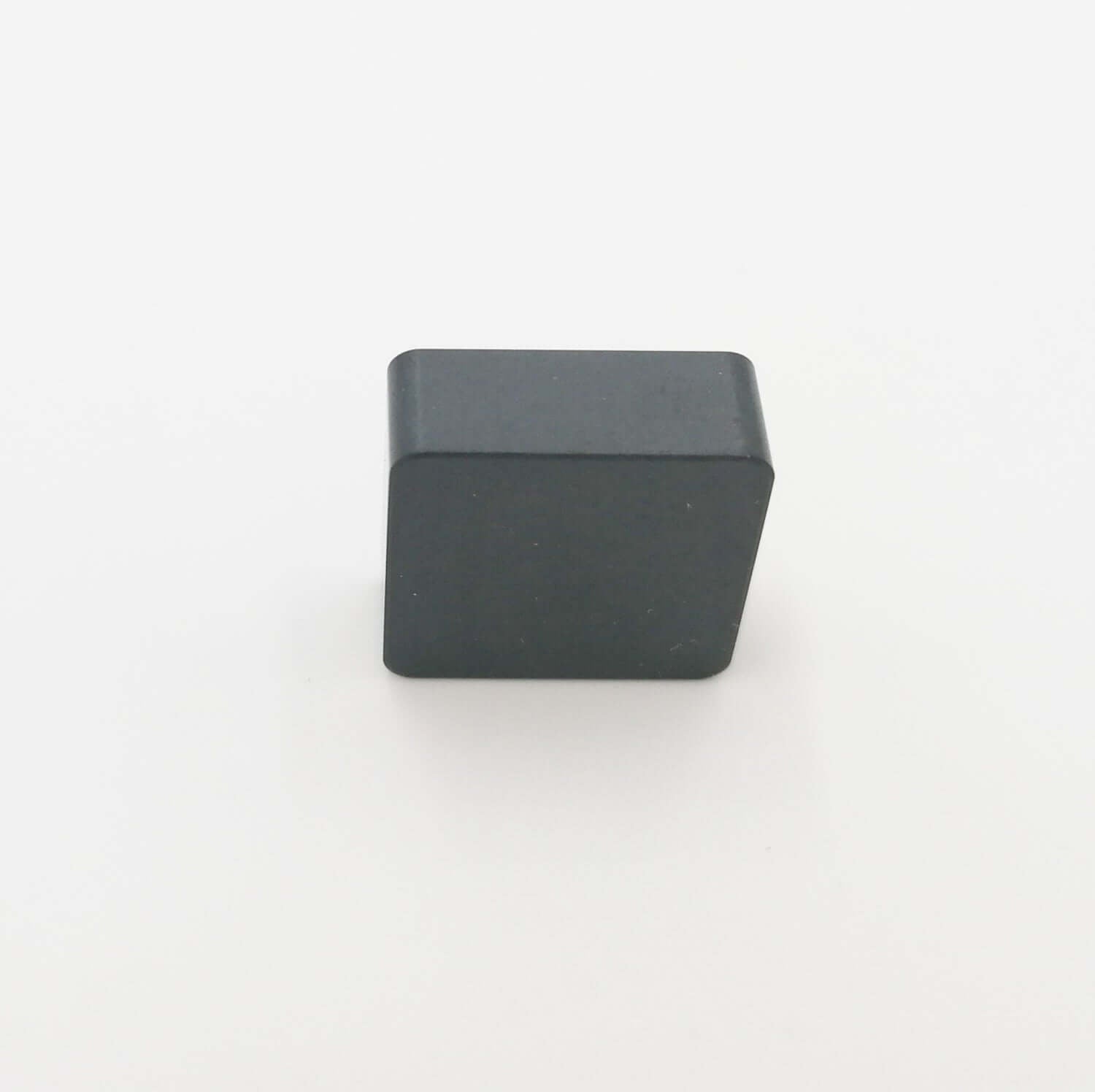

Solid CBN insert SNEN0903ENS-M08 TB100 for rough milling - fits SECO milling cutters

Regular price
$23.90 USD
Regular price
Sale price
$23.90 USD
Shipping calculated at checkout.
  • ISO size of the insert: SNEN0903ENS-M08
  • CBN material grade: TB100
  • cutting edge counts: 4
  • insert included angle: 90°
  • Theoretical cutting edge length:9.52 mm
  • Insert thickness:3.18mm

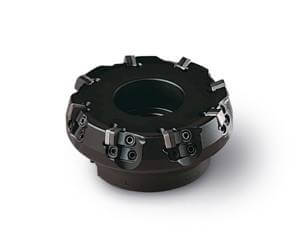

  • Fitting milling cutter type : SECO Milling Cutter Series 220.74
  • Application: Grey cast iron
  • machining process:   Rough
  • Delivery time : No stock,   1 week for production
  • Min. order Qty:  2pcs

CBN(Cubic Boron Nitride) grade TB100 is specially designed by ToolingBox (Beijing) Industrial Technology Co.,Ltd for cast iron machining with high-speed, such as normal gray cast iron, engine cylinder and cover etc, with 88-94% pure PCBN content (8-12um particle size) in a metallic based binder which greatly helps in dissipating heat.

This CBN material can produce as good or better tolerances than conventional grinding with longer tool life and machining efficiency.

Revolution for milling cast iron material, recommended cutting data:

Vc up to 1000m/min;

Fz up to 0.5;

Ap max to 4mm;

Better tool life with high effectiveness. Please visit us for more details via www.
