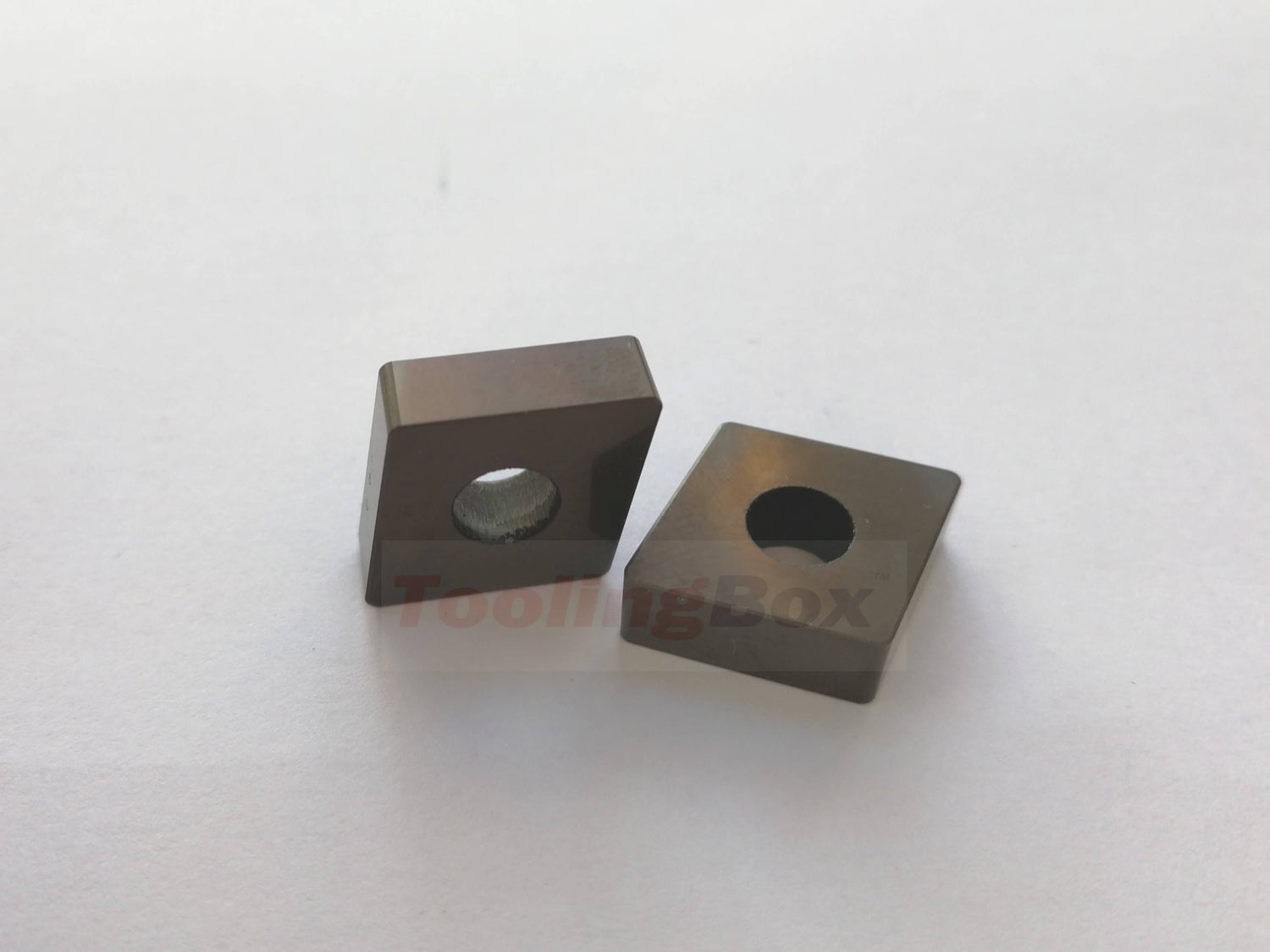

  • Solid CBN insert CNMG1204 TB400

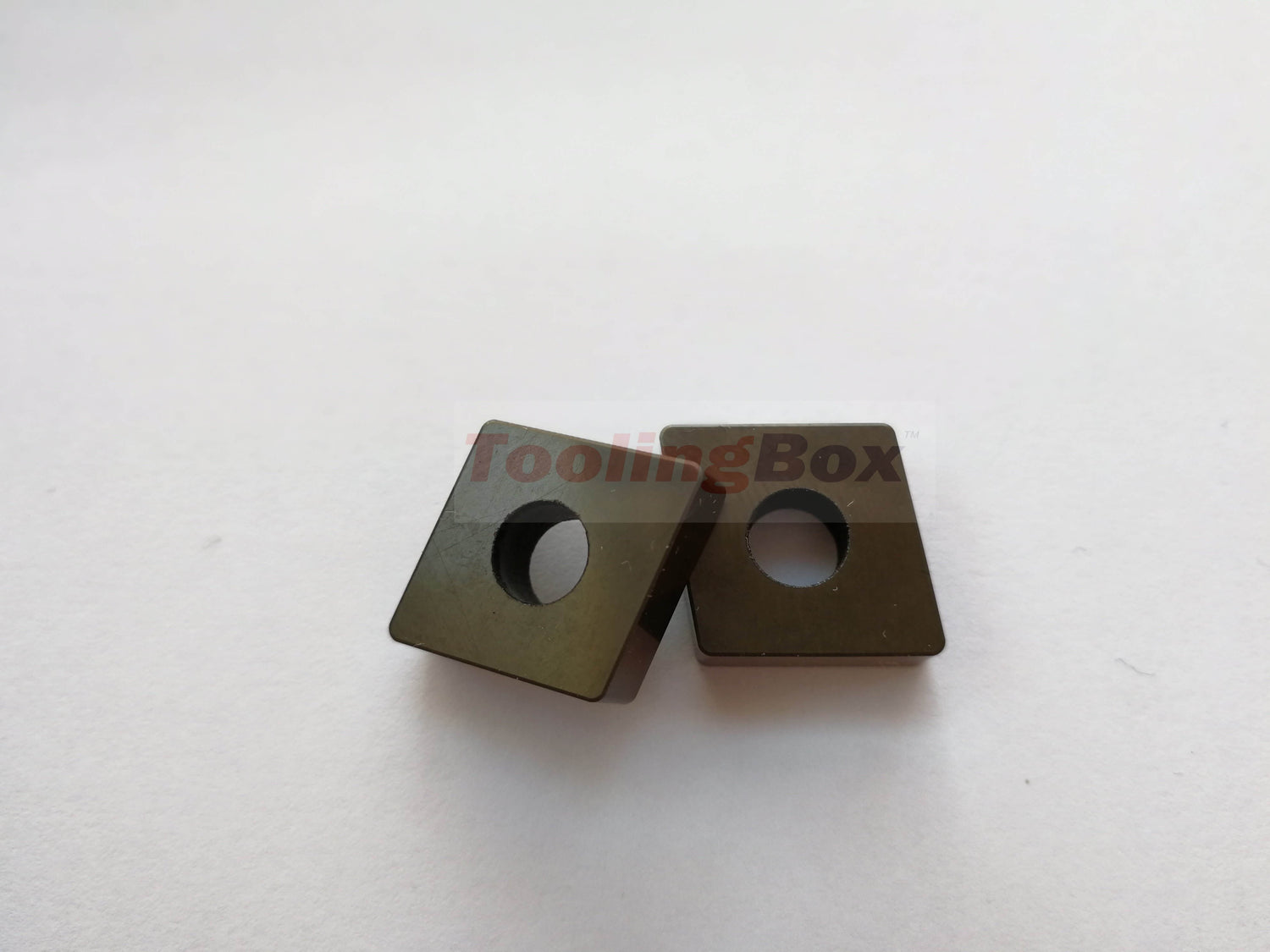

  • Solid CBN insert CNMG1204 TB400 with staight hole

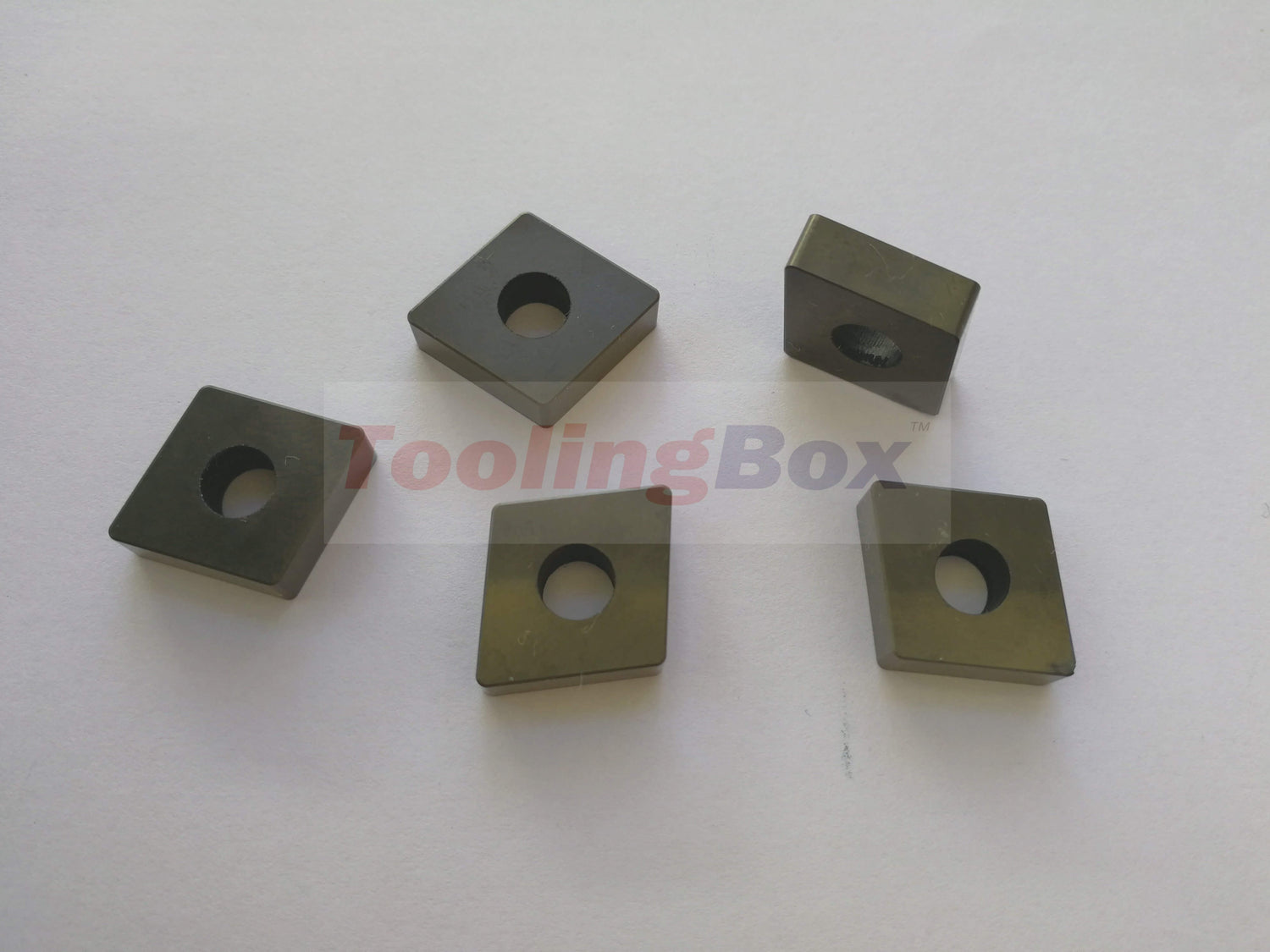

  • Solid CBN insert CNMG1204 TB400 for alloy cast steel

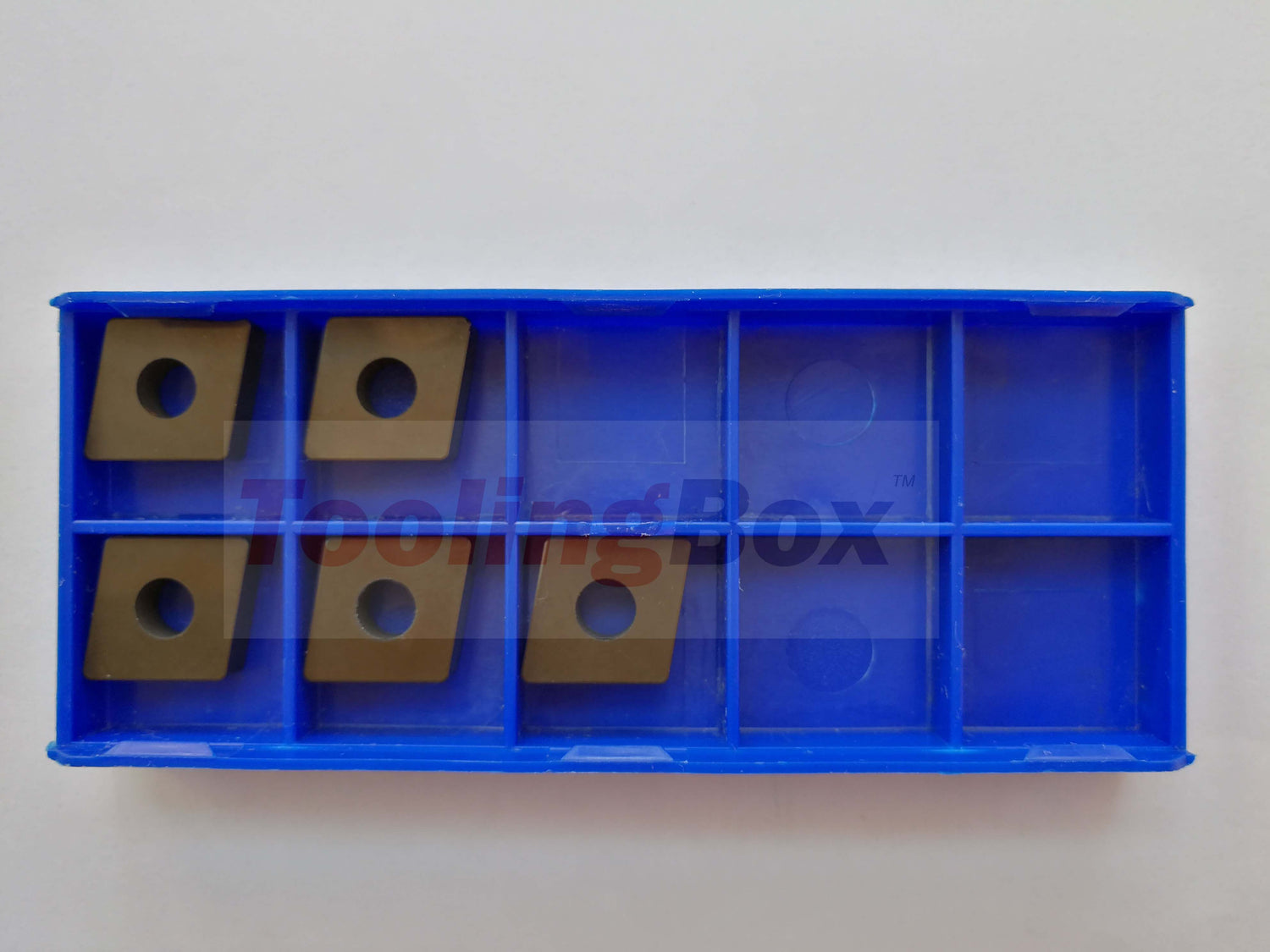

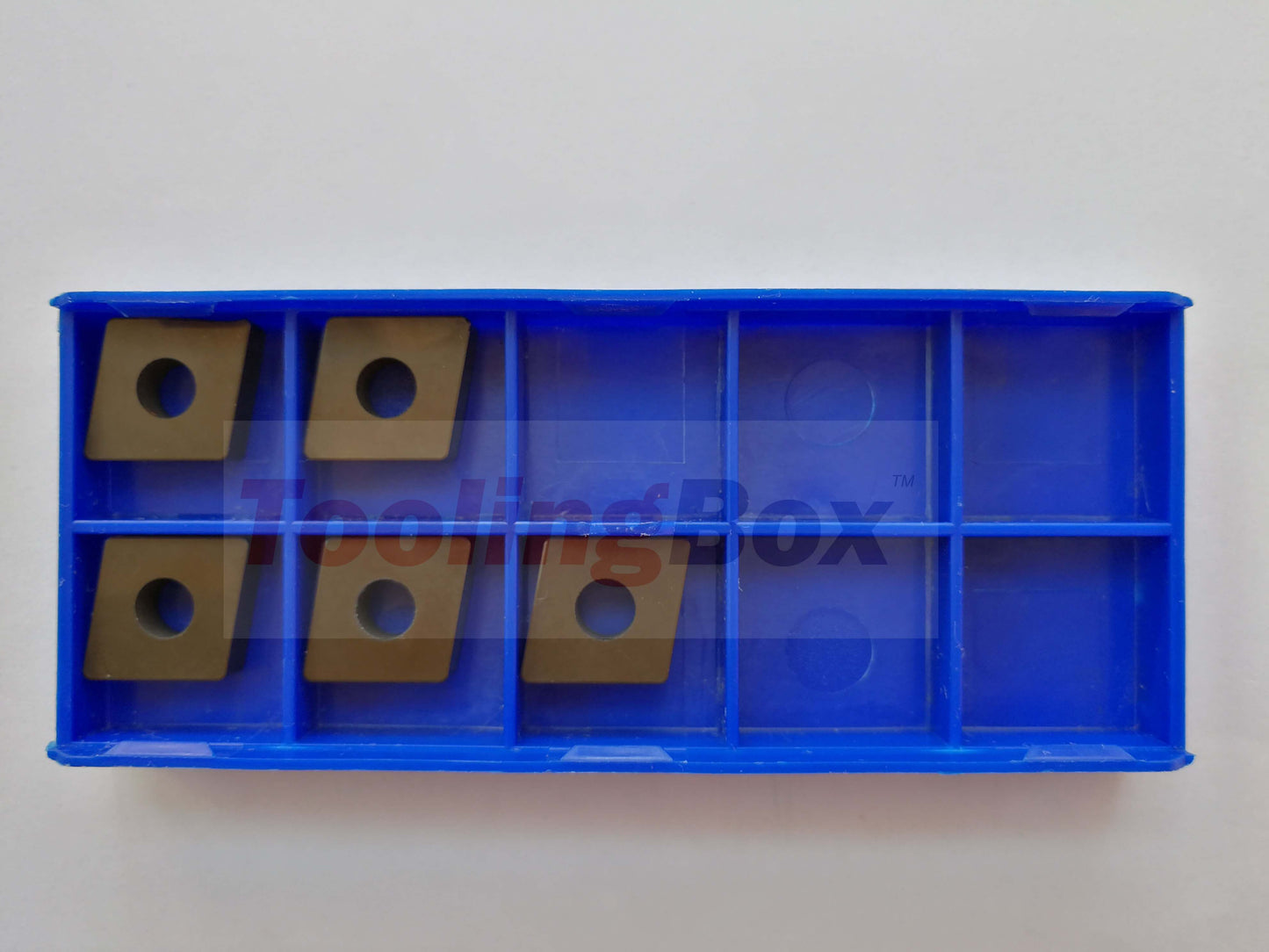

  • 10pcs packing Solid CBN insert CNMG1204 TB400
  • Solid CBN insert CNMG1204 TB400 with 4 cutting edges

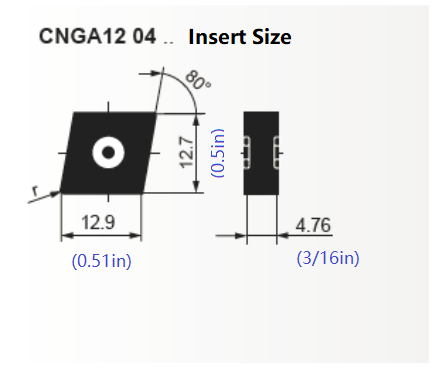

  • size of CNGA1204 solid CBN insert
1 of 6

ToolingBox

Solid CBN insert CNGA1204 TB200 for hardened steel turning

Regular price
$22.90 USD
Regular price
Sale price
$22.90 USD
Shipping calculated at checkout.
Size
  • ISO size of the insert: CNGA1204XX
  • CBN material grade: TB200
  • cutting edge counts: 4
  • Side length:12.9 mm (0.51in)
  • Insert thickness:4.76mm(3/16in)
  • machining process:   rough or semi-fishining for hardened steel turning



CBN(Cubic Boron Nitride) grade TB200 is specially designed by ToolingBox (Beijing) Industrial Technology Co.,Ltd for hardened steel turning, such as die steel, tool steel, quenching steel with HRC55-65, with 85-90% pure PCBN content (1-3um particle size) in a metallic based binder which greatly helps in dissipating heat.

This CBN material can produce as good or better tolerances than conventional grinding with longer tool life and machining efficiency.

Recommended cutting data:

Vc=80-200m/min; f=0.15-0.35; Ap=0.1-2.0mm;

Better tool life with high effectiveness. Please visit us for more details via www. toolingbox.com
