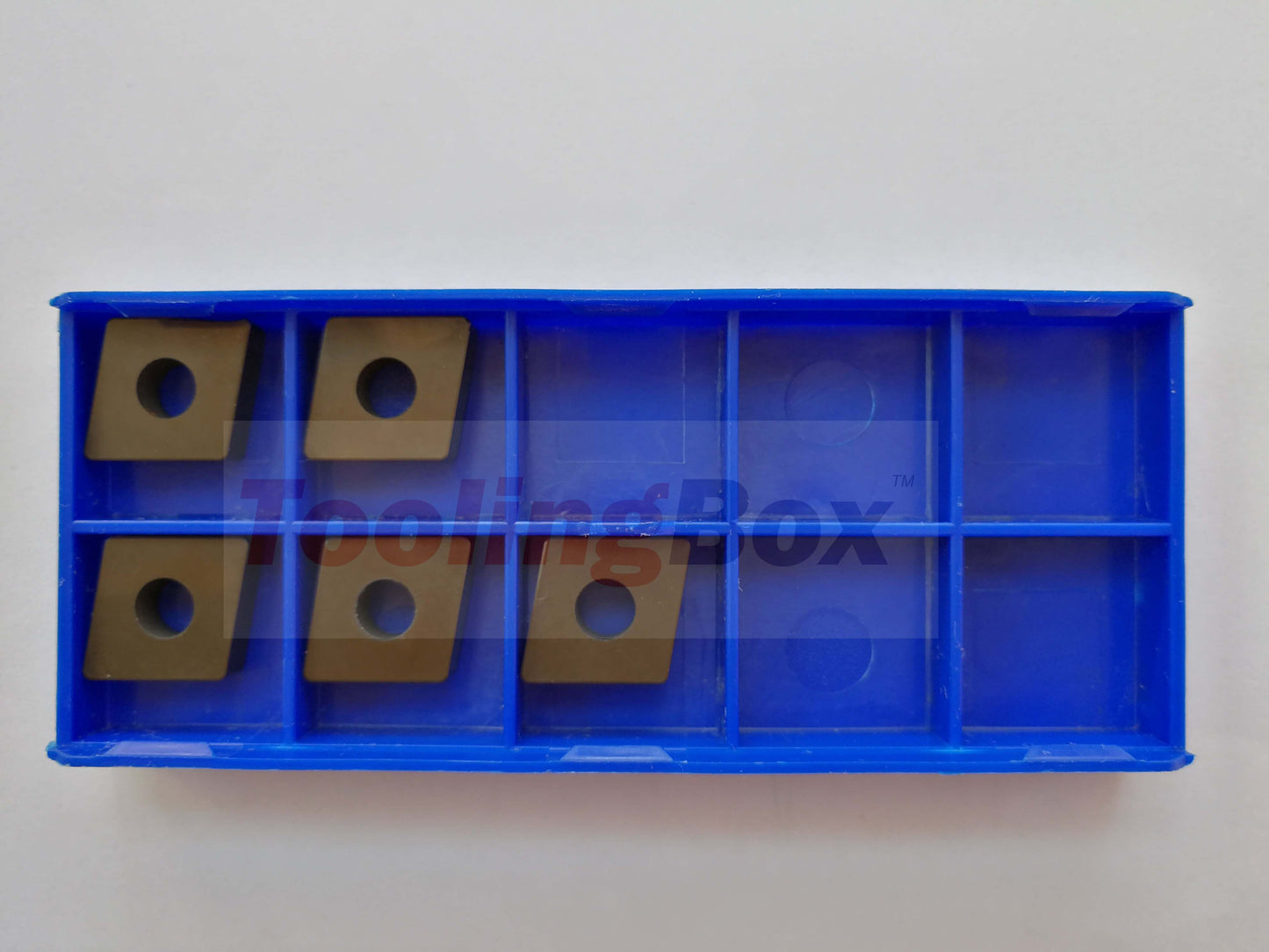

  • 10 pcs packing full CBN inserts CNMG 1204 TB100 with straight hole
1 of 5

ToolingBox

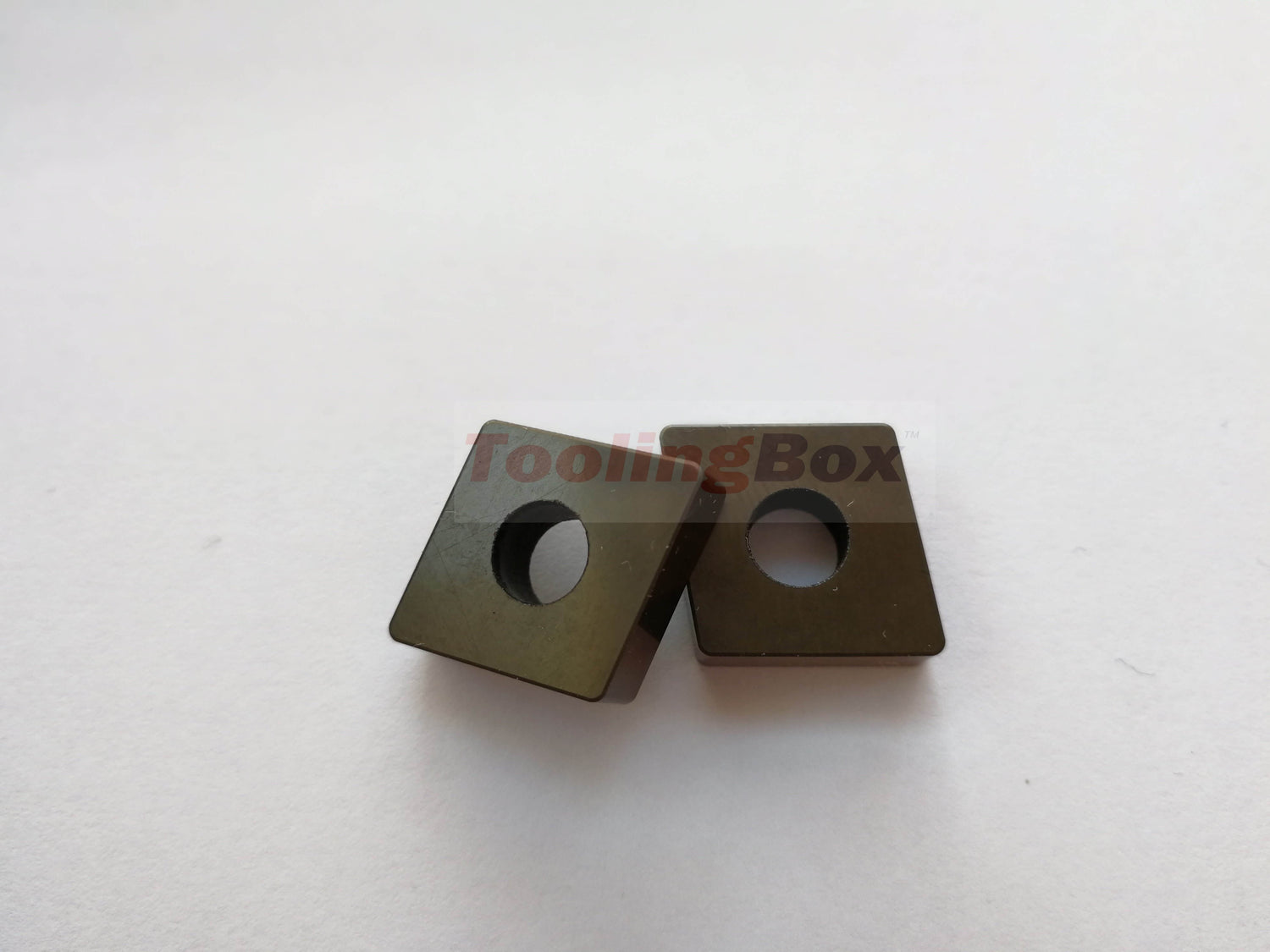

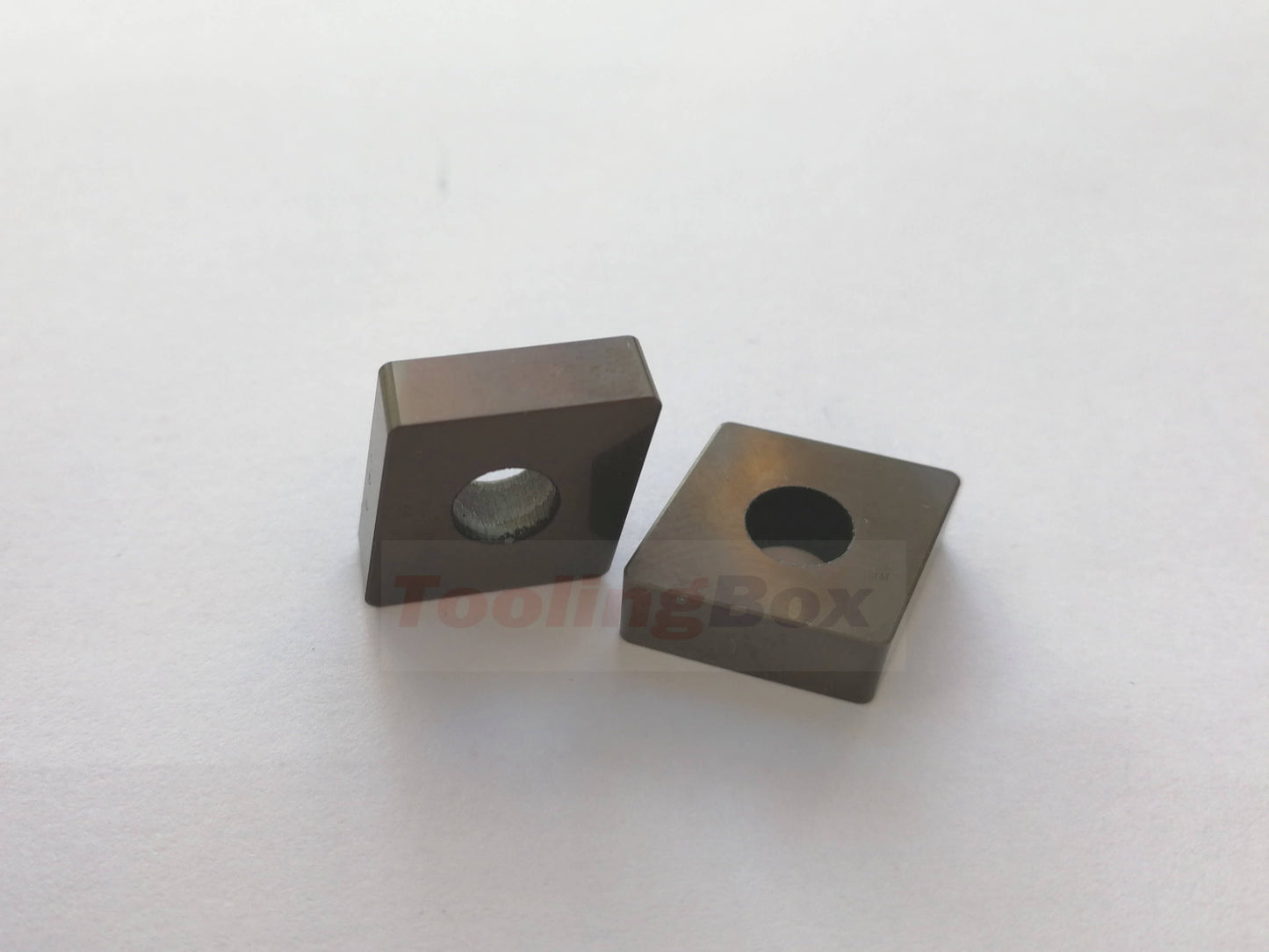

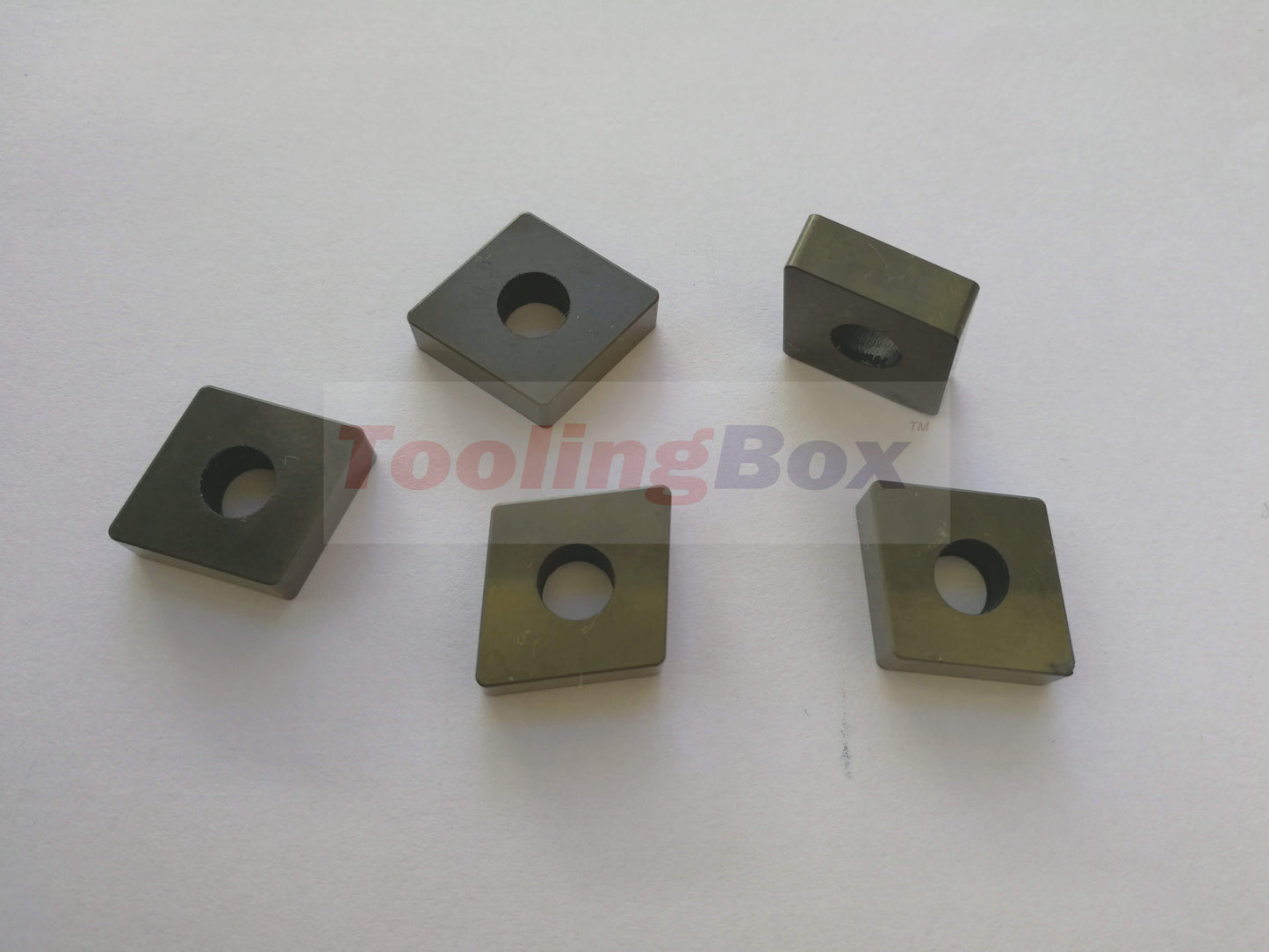

Full CBN inserts CNMG1204 TB100 for gray cast iron machining- Brake disc turning

Regular price
$21.50 USD
Regular price
Sale price
$21.50 USD
Shipping calculated at checkout.
Size

CBN(Cubic Boron Nitride) grade TB100 is specially designed by ToolingBox (Beijing) Industrial Technology Co.,Ltd for cast iron machining with high-speed, such as normal gray cast iron, engine cylinder and cover etc, with 88-94% pure PCBN content (8-12um particle size) in a metallic based binder which greatly helps in dissipating heat.

 This CBN material can produce as good or better tolerances than conventional grinding with longer tool life and machining efficiency.

CNMG1204 type solid CBN insert is full CBN with hole in center, if the machining stock is more than 1mm when machining cast iron material, the solid CBN type is much stronger than brazed type.

Revolution for milling cast iron material,especially for the brake disc machining.

Vc up to 1000m/min;

Fz up to 0.5;

Ap max to 4mm;

Better tool life with high effectiveness. Please visit us for more details via www. toolingbox.com
