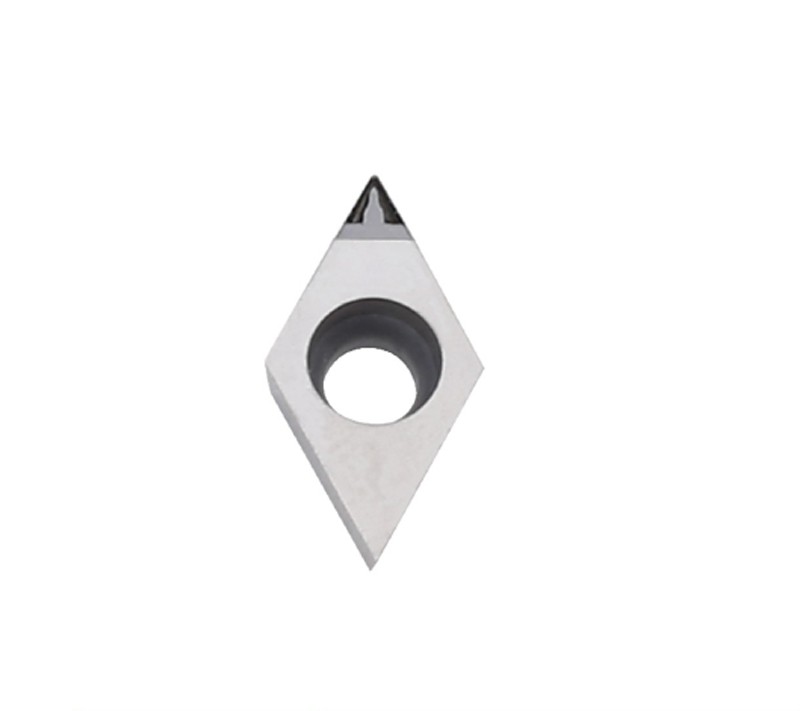

PCD Insert with chip-breaker DCGW-TCD200 for Ceramic,Graphite,Non-metal &Wood ,2pcs/set

Regular price
$21.90 USD
Regular price
Sale price
$21.90 USD
Shipping calculated at checkout.
Size

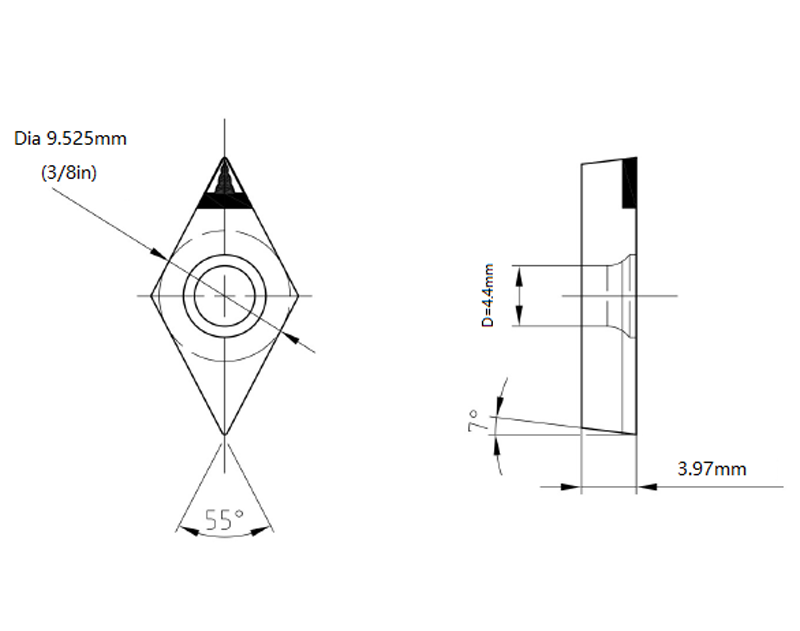

  • ISO type DCGW11T3 PCD Insert with chip-breaker: 55° diamond shape with a length 11.6mm(0.45in) and thickness 3.97mm( 0.156in)
  • Single tipped PCD cutting edge
  • With chip-breaker design:  the chipbreaking geometries are designed to ensure reliable chipbreaking under fully automated conditions.
  • TCD 200 grade suitable for ceramic,graphite,non-metal &wood turning.

The turning insert is tipped a PCD layer on one corner of the insert, it's a very good way to achieve high precision cutting with an economical cost saving. The PCD grade TCD200 is a universal PCD grade with the average particle size of 10um, which has good toughness and wear resistance with the balanced processing performance, specially for the turning of ceramic, graphite, non-metal &wood.

Please kindly make sure your machining materials and requirements before choosing the PCD inserts with righ type and PCD grade. if you need help or inquiry, please feel free to email us, or you can visit our official company web www.toolingbox.com for more technical support.
