PCD Insert TCGW-TCD100 for Aluminum (Si<13%) Alloy, Non-metal &Wood Plank,2pcs/set

Regular price
$19.90 USD
Regular price
Sale price
$19.90 USD
Shipping calculated at checkout.
Size

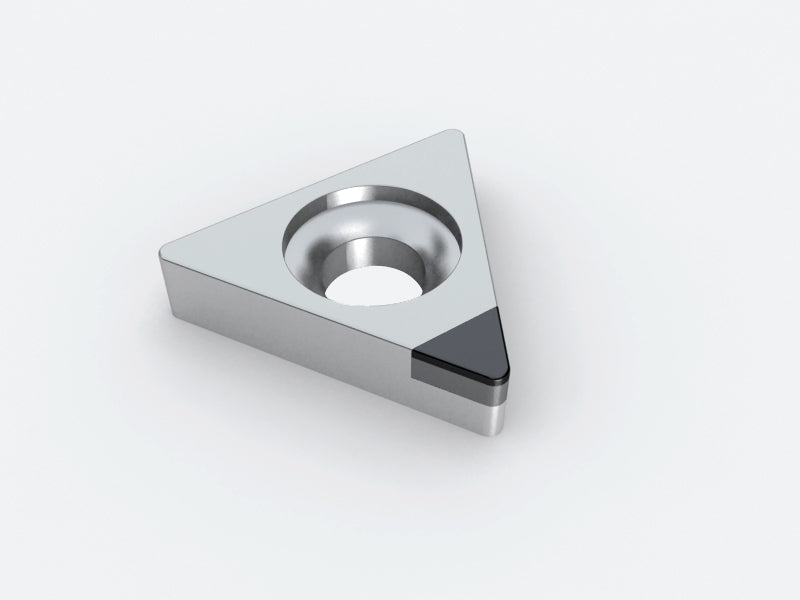

  • ISO type TCGW1103/TCGW1604 PCD Insert: 60° triangle shape with side length 11mm(0.43in)/16.5mm(0.65in) and thickness 3.18mm( 1/8in) /4.76mm(3/16in).
  • Single tipped PCD cutting edge
  • TCD 100 grade suitable for aluminum alloy (Si<13%) and non-metal finishing turning, wood plank cutting off.

The turning insert is tipped a PCD layer on one corner of the insert, it's a very good way to achieve high precision cutting with an economical cost saving. The PCD grade TCD 100 is developed by ToolingBox  specially for aluminum alloy (Si<13%) and non-metal finishing turning , wood plank cutting off, which has the ultrafine particle size  of 1um, good impact and abrasion resistance, its sharp edge is very suitable for finishing and cutting off.

Please kindly make sure your machining materials and requirements before choosing the PCD inserts with righ type and PCD grade. if you need help or inquiry, please feel free to email us, or you can visit our official company web www.toolingbox.com for more technical support.
