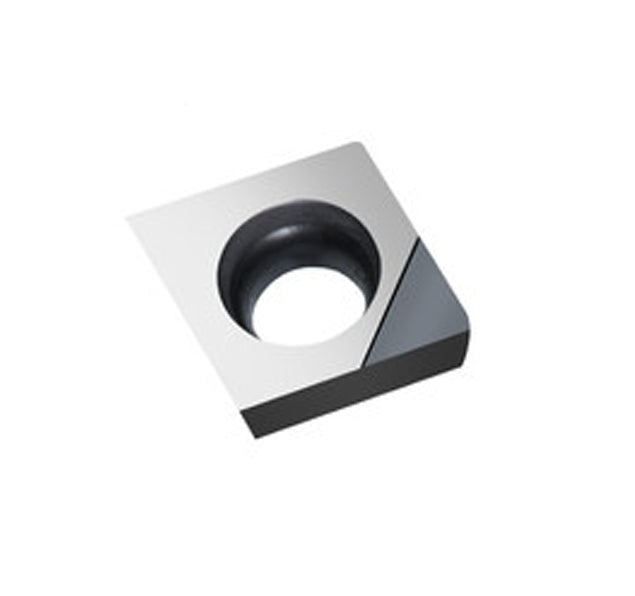

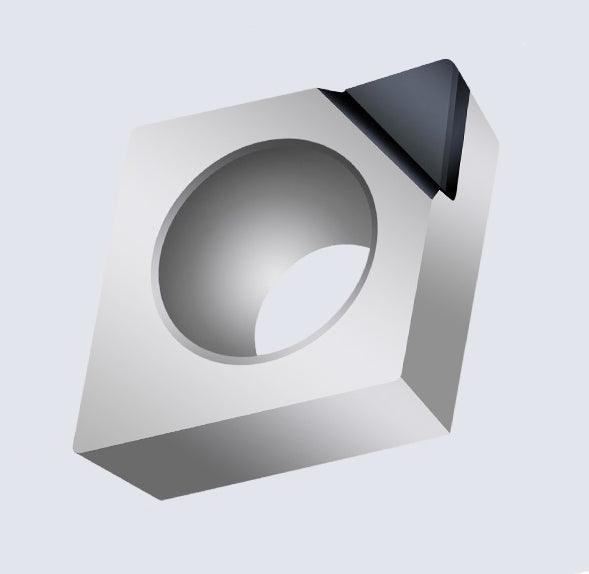

PCD Insert CCGW-TCD300 for Aluminum (Si>13%) Alloy, MMC and Rocks

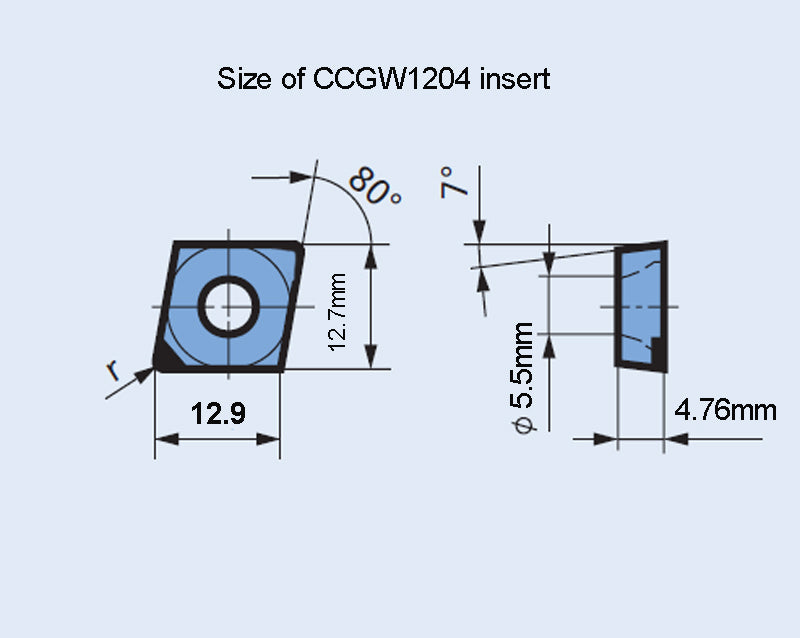

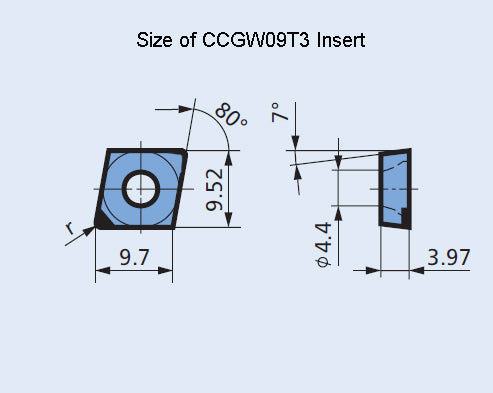

• ISO type CCGW0903/CCGW1204 PCD Insert： 80° diamond shape with thickness 3.97mm( 0.156in) and 4.76mm(3/16in).
• Single tipped PCD cutting edge
• TCD 300 grade suitable for aluminum alloy (Si>13%), MMC material ( metal-matrix composite) based aluminum, sintered ceramic and rocks.

The turning insert is tipped a PCD layer on one corner of the insert, it's a very good way to achieve high precision cutting with an economical cost saving. The PCD grade TCD 300 is a mixed particle size diamond material with 2-30um particle size, manufactured by high temperature and high pressure technology, which has excellent wear resistance, toughness and blade quality. It is specially designed for aluminum alloy (Si>13%),  MMC material ( metal-matrix composite) based aluminum, sintered ceramic and rocks machining.

Please kindly make sure your machining materials and requirements before choosing the PCD inserts with righ type and PCD grade. if you need help or inquiry, please feel free to email us, or you can visit our official company web www.toolingbox.com for more technical support.
