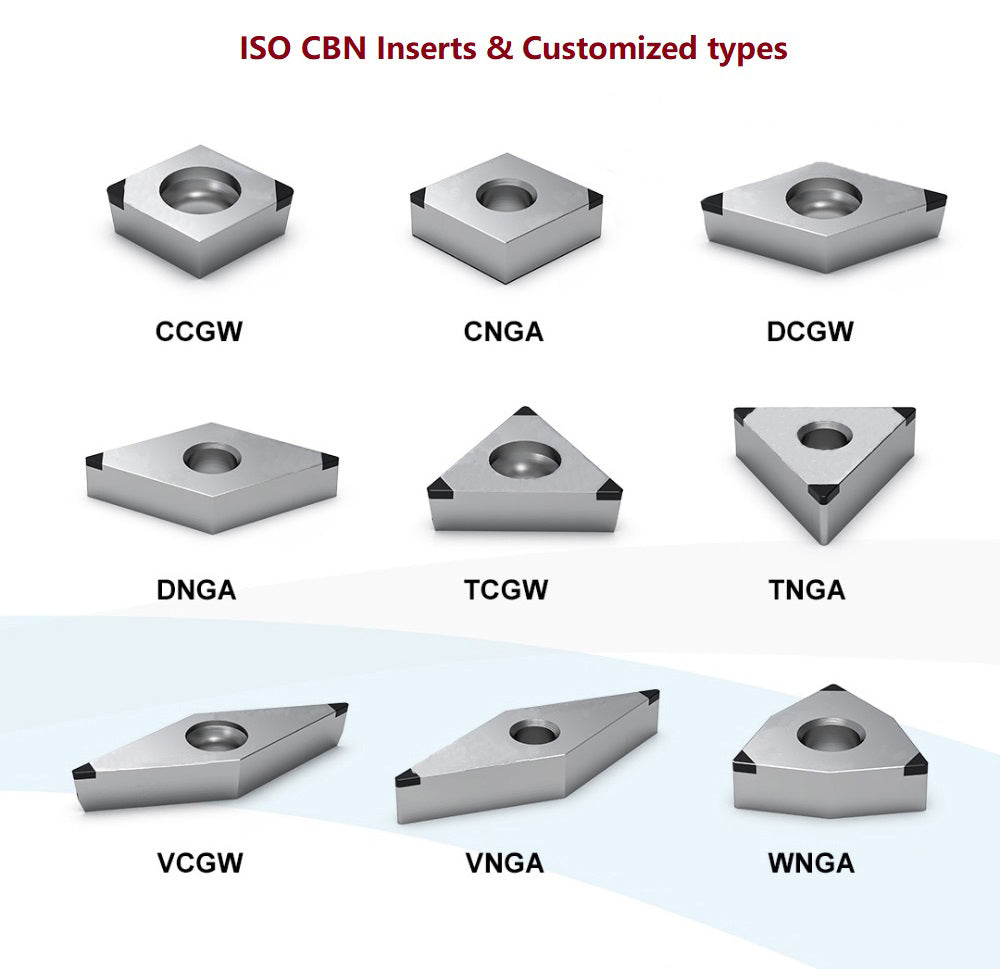

  • ToolingBox ISO and customized CBN inserts
  • Application of CBN inserts
1 of 5

ToolingBox

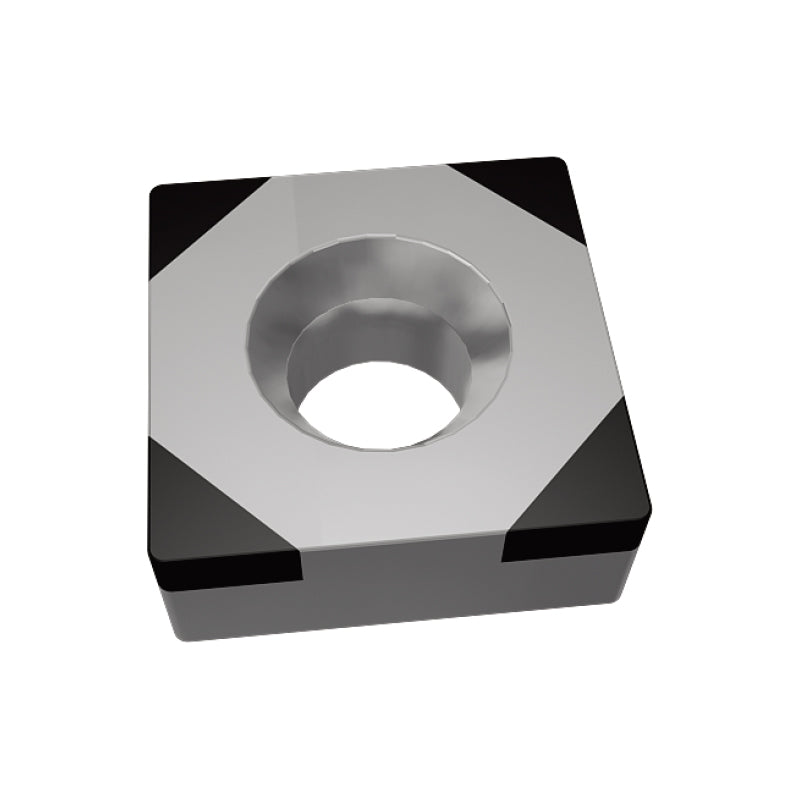

PCBN inserts SCGW09T3-TBN40 for Cast Iron Finishing Turning, 4 cutting edges

Regular price
$47.90 USD
Regular price
Sale price
$47.90 USD
Shipping calculated at checkout.
Size
  • ISO type SCGW09T3 CBN Insert: square shape with 7° back angle side length 9.52mm(0.375in) thickness 3.97mm(0.156in).
  • 4 tipped CBN cutting edges
  • TBN40 grade is designed for cast Iron turning, especially for finishing turning with interrupted cutting.
  • Production Time: 5 wooking days if no stock

The CBN insert with tipped a CBN layer on the corners of the insert is a very good way to achieve high precision cutting with an economical cost saving. The CBN grade TBN40 is developed by ToolingBox specially for cast iron finishing turning with interrupted cutting, which has the ultrafine particle size of 2um with good combination of wear resistance and thermal stability.

Please kindly make sure your machining materials and requirements before choosing the CBN inserts with righ type and CBN grade. if you need help or inquiry, please feel free to email us via sales@toolingbox.store or you can visit our official company web www.toolingbox.com for more technical support.
