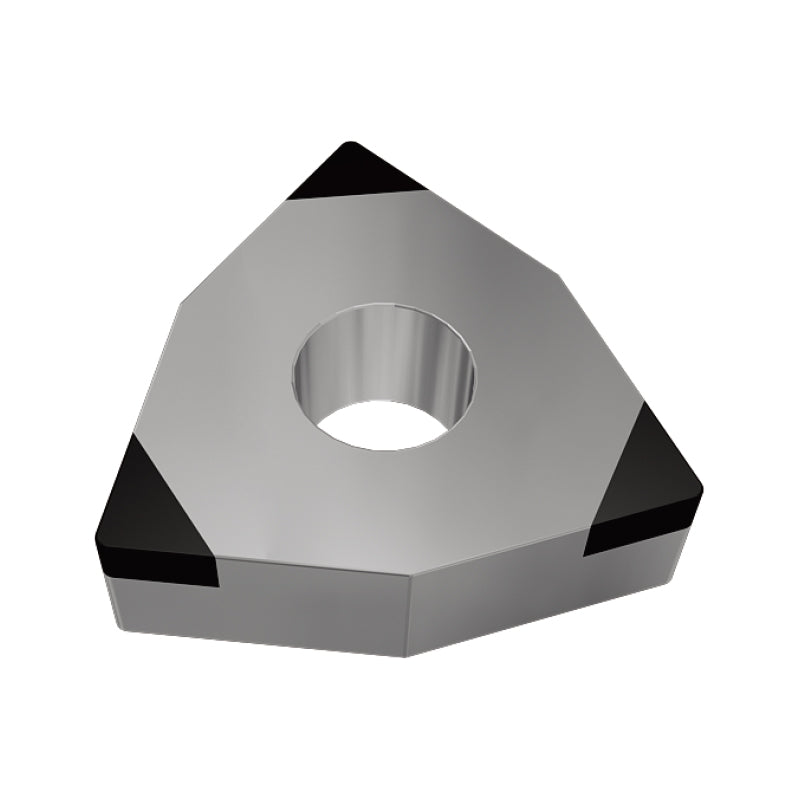

  • WNGA0804 cbn insert

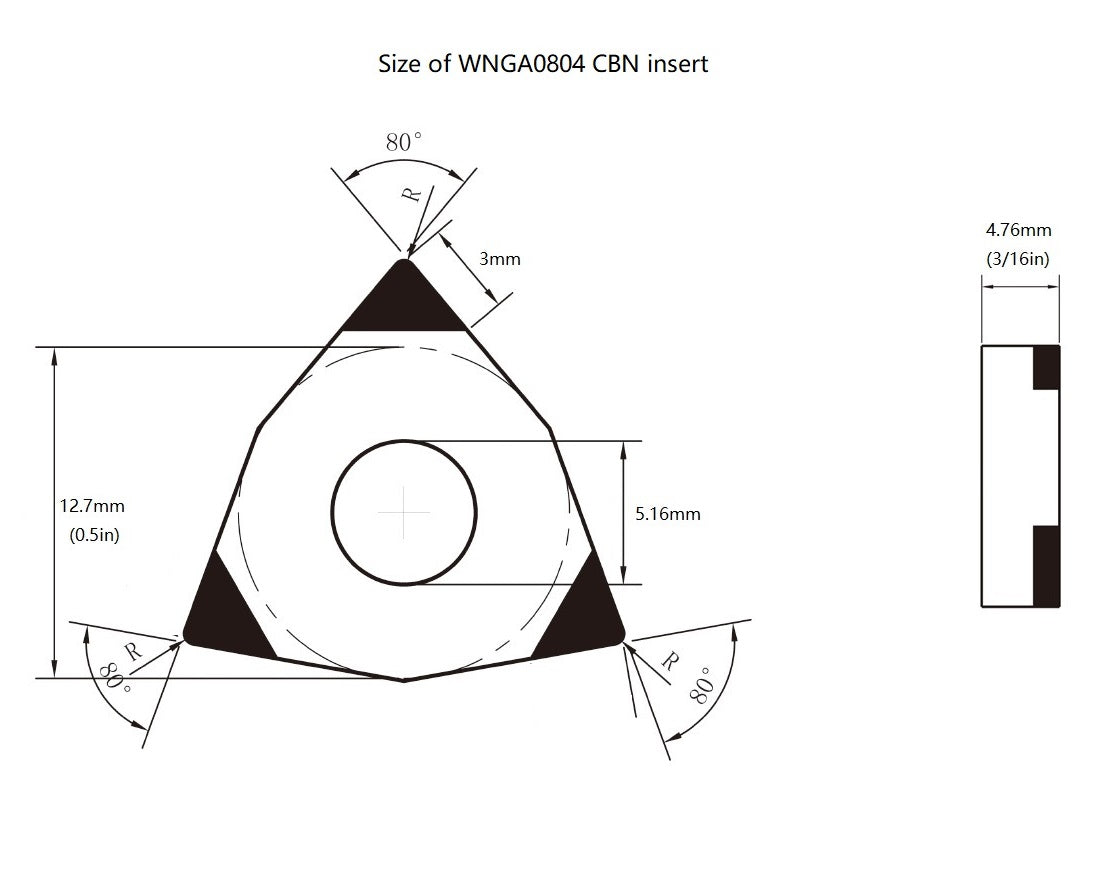

  • size of WNGA0804 cbn insert

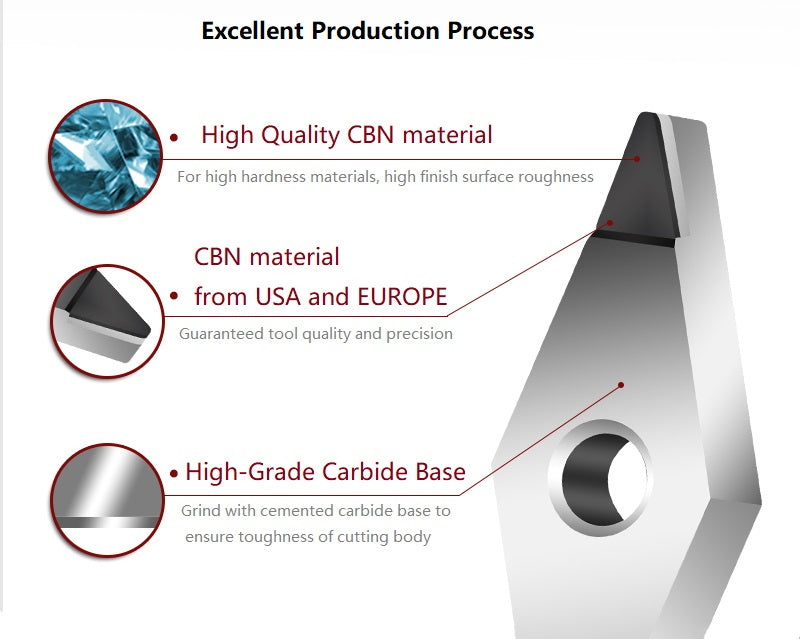

  • excellent production process for cbn inserts

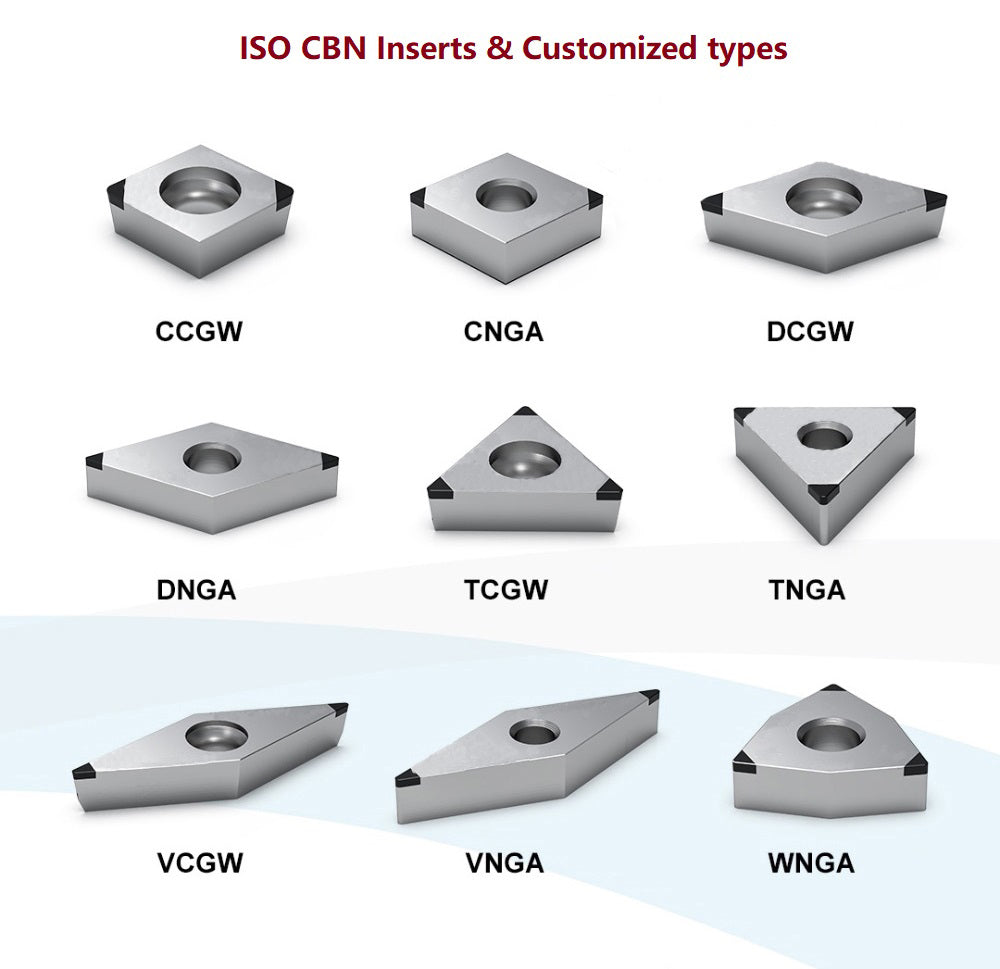

  • ToolingBox ISO and customized CBN inserts

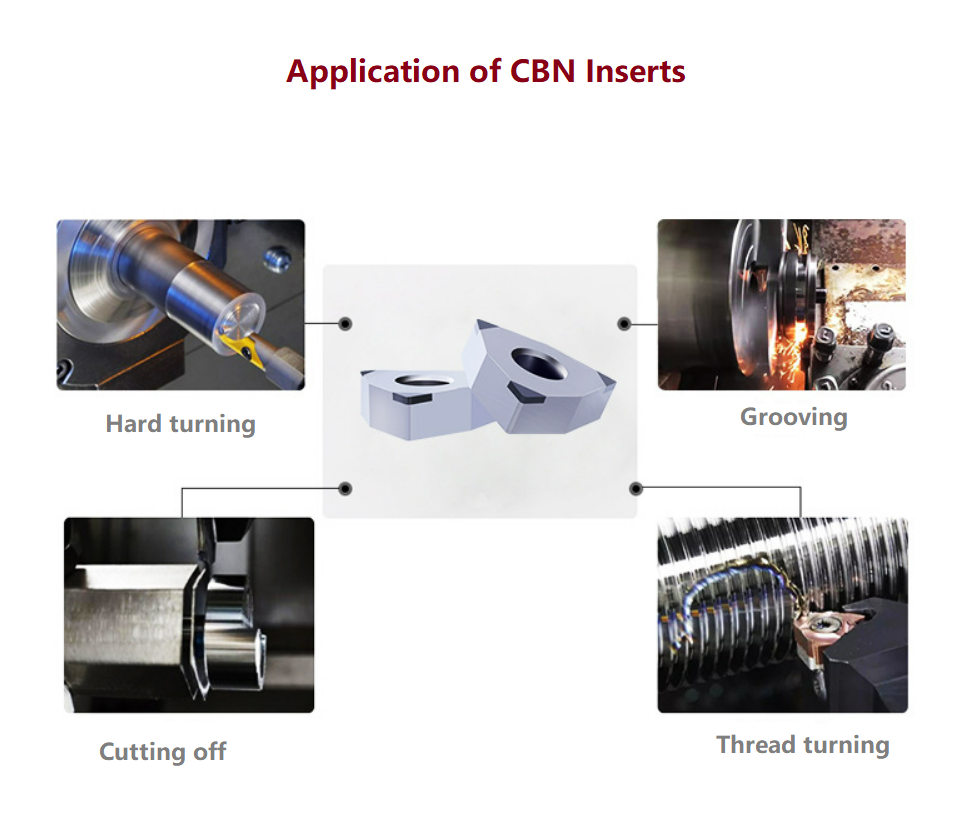

  • Application of CBN inserts
1 of 5


CBN tipped inserts WNGA0804-TBN20 for Hardened Steel Turning

Regular price
$59.90 USD
Regular price
Sale price
$59.90 USD
Shipping calculated at checkout.
  • ISO type WNGA0804 CBN Insert: W shape with dia inscribed circle 12.7mm(0.5in) thickness 4.76mm(3/16in).
  • 3 tipped CBN cutting edges
  • TBN20 grade is designed for general processing, suitable for moderately interrupted and continuous turning of hardened steel.
  • Production Time: 5 wooking days if no stock

The CBN insert with tipped a CBN layer on the corners of the insert is a very good way to achieve high precision cutting with an economical cost saving. The CBN grade TBN20 is developed by ToolingBox specially for general processing of hardened steel, suitable for moderately interrupted and continuous turning, which has the ultrafine particle size of 1-2um, good combination of wear resistance and thermal stability.

Please kindly make sure your machining materials and requirements before choosing the CBN inserts with righ type and CBN grade. if you need help or inquiry, please feel free to email us via or you can visit our official company web for more technical support.
