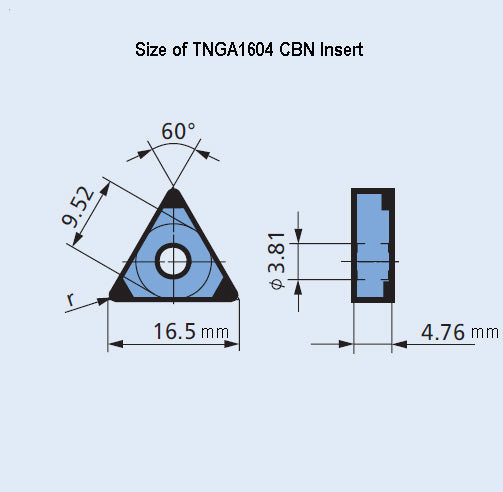

  • size of tnga1604 cbn lathe inserts
  • excellent production process for cbn inserts
  • ToolingBox ISO and customized CBN inserts

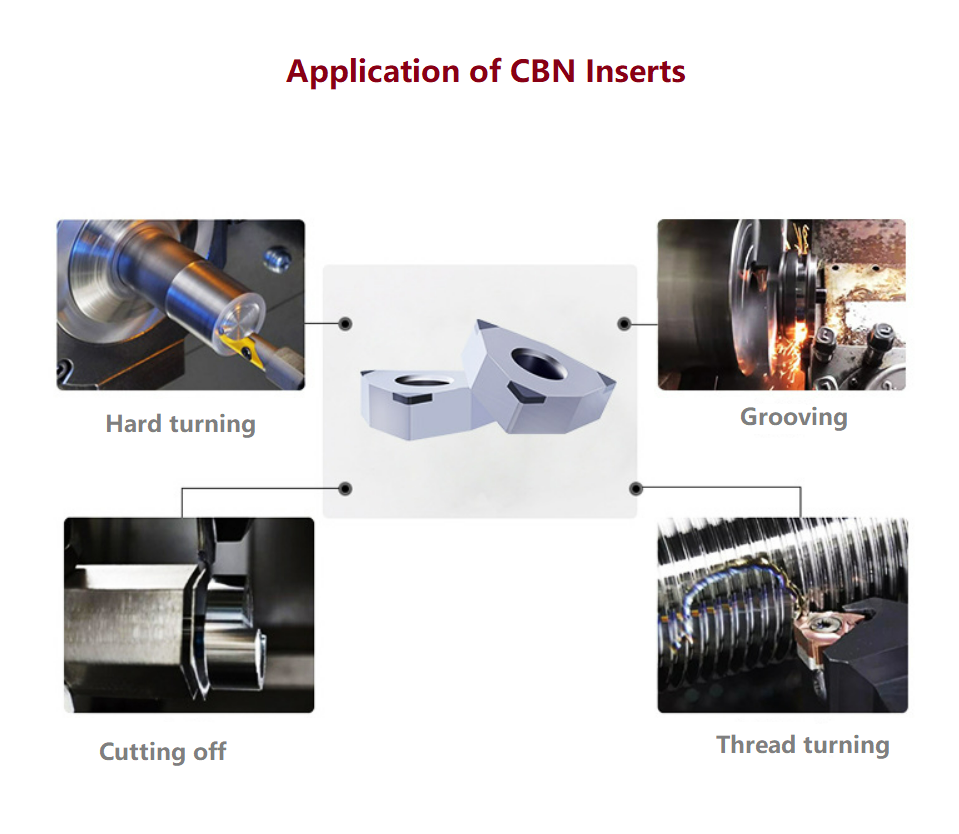

  • Application of CBN inserts
1 of 5

ToolingBox

CBN tipped inserts TNGA1604-TBN20 for Hardened Steel Turning

Regular price
$59.90 USD
Regular price
Sale price
$59.90 USD
Shipping calculated at checkout.
Size
  • ISO type TNGA1604 CBN Insert: triangle shape with side length 16.5mm(0.65in) thickness 4.76mm(3/16in).
  • 3 tipped CBN cutting edges
  • TBN20 grade is designed for general processing, suitable for moderately interrupted and continuous turning of hardened steel.
  • Production Time: 5 wooking days if no stock

The CBN insert with tipped a CBN layer on the corners of the insert is a very good way to achieve high precision cutting with an economical cost saving. The CBN grade TBN20 is developed by ToolingBox specially for general processing of hardened steel, suitable for moderately interrupted and continuous turning, which has the ultrafine particle size of 1-2um, good combination of wear resistance and thermal stability.

Please kindly make sure your machining materials and requirements before choosing the CBN inserts with righ type and CBN grade. if you need help or inquiry, please feel free to email us via sales@toolingbox.store or you can visit our official company web www.toolingbox.com for more technical support.
