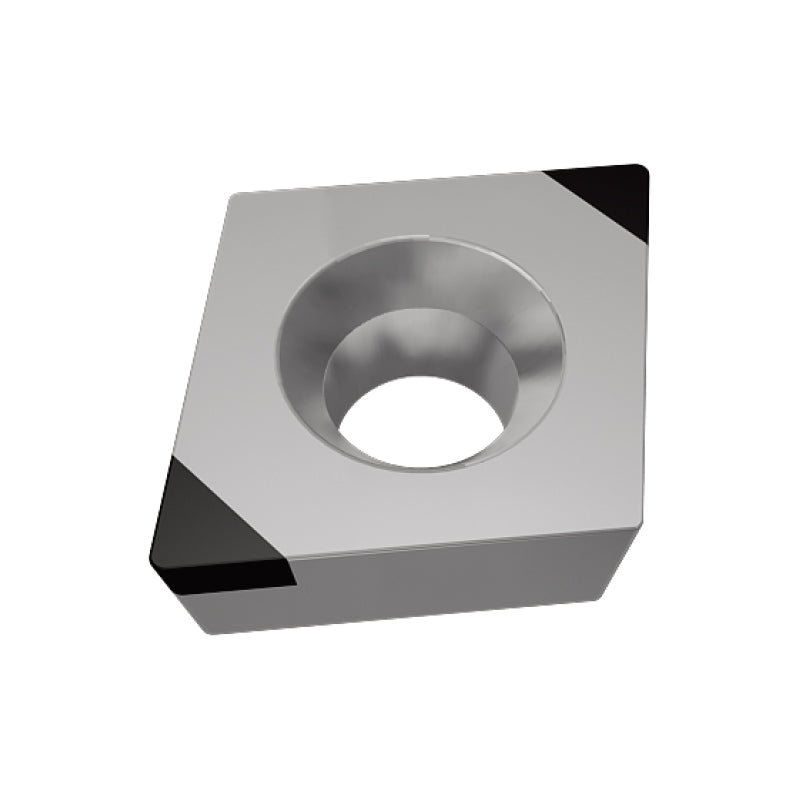

CBN insert CCGW0602-TBN50 for Powder Metallurgy Material

Regular price
$39.90 USD
Regular price
Sale price
$39.90 USD
Shipping calculated at checkout.
  • ISO type CCGW0602 CBN turning Inserts: 80° diamond shape with 7° back angle, side length 6.4mm(0.25in) thickness 2.38mm(0.094in).
  • 2 tipped CBN cutting edges
  • TBN50 grade is specially designed for powder metallury material or sintered metal.
  • Production Time: 5 wooking days if no stock

The CBN insert with tipped a CBN layer on the corners of the insert is a very good way to achieve high precision cutting with an economical cost saving. The CBN grade TBN50 is developed by ToolingBox specially for sintered metal turning, which has the ultrafine particle size of 5um, good combination of wear resistance and impact resistance.

Please kindly make sure your machining materials and requirements before choosing the CBN inserts with righ type and CBN grade. if you need help or inquiry, please feel free to email us via or you can visit our official company web for more technical support.
