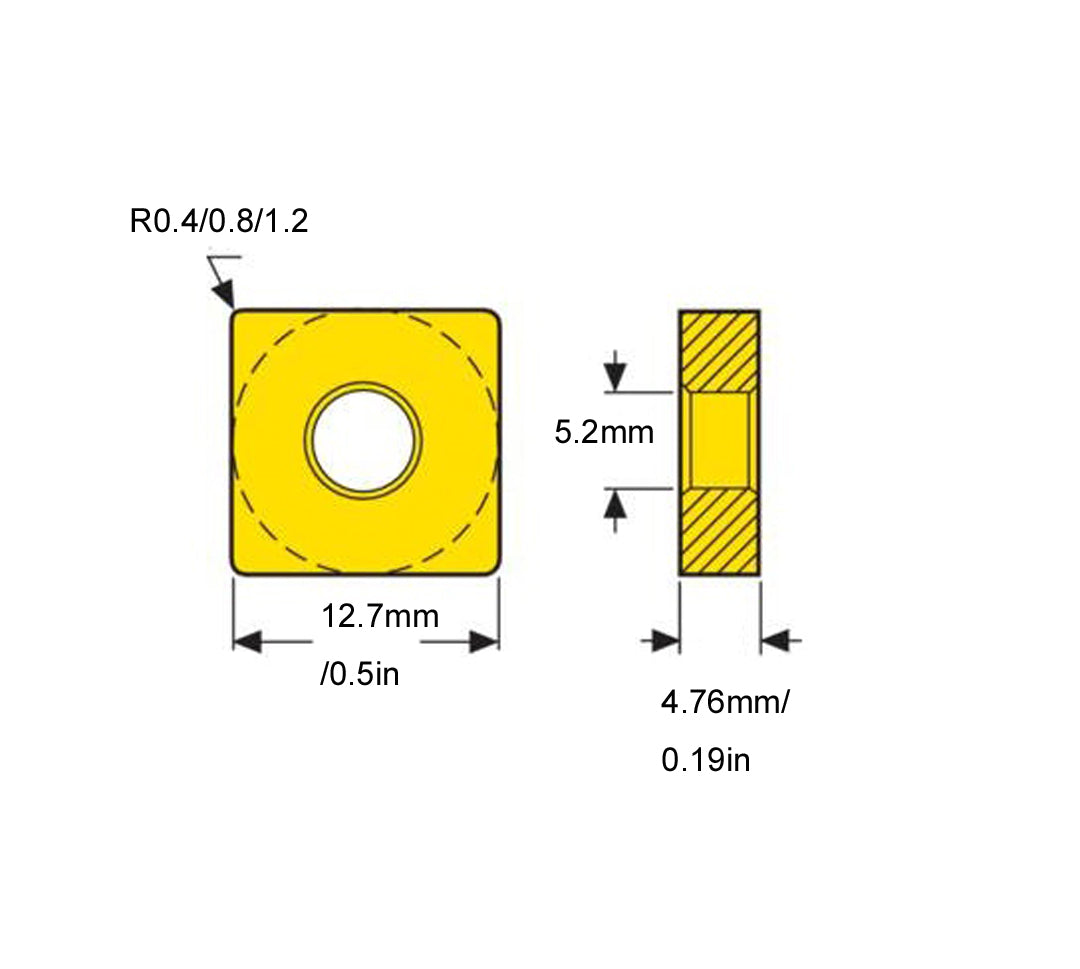

  • size of SNMG1204 TBC10
1 of 2

ToolingBox

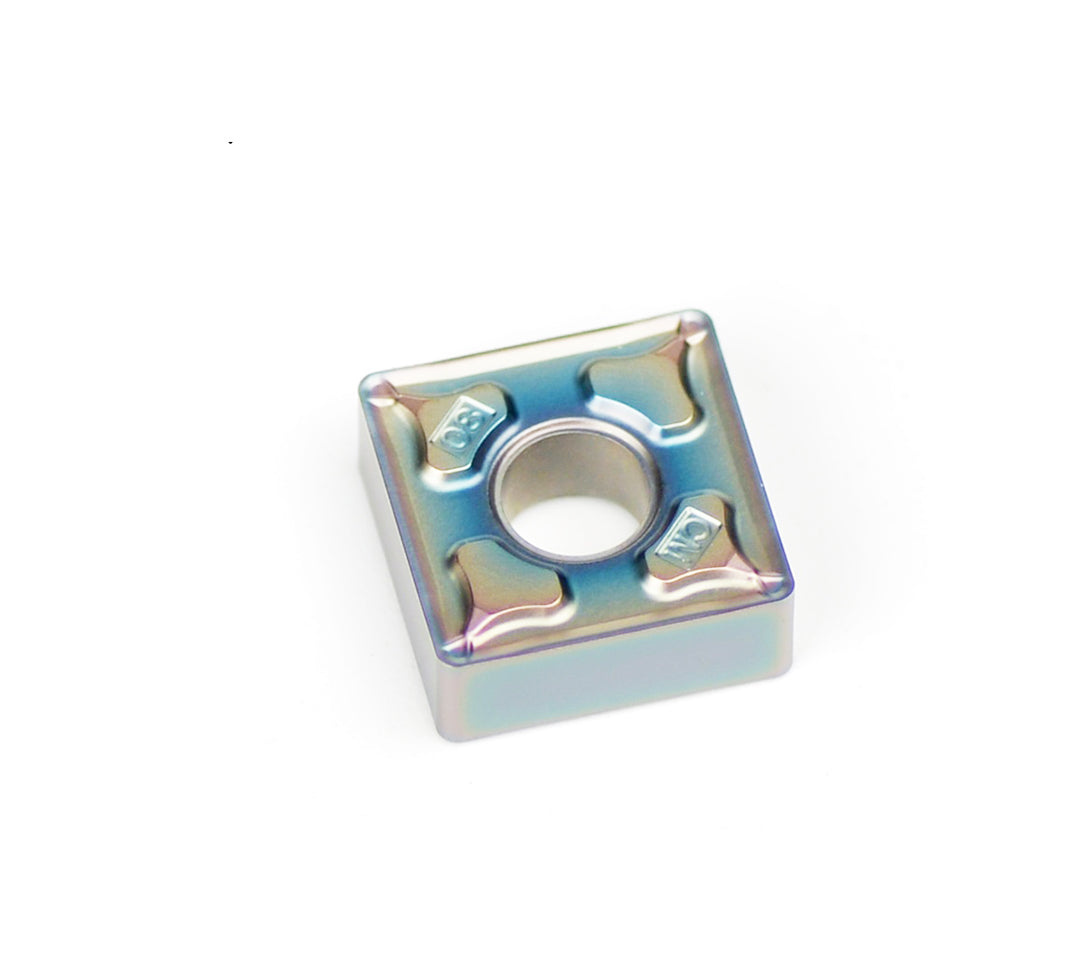

Carbide Turning Inserts SNMG1204 TBC10 for CoCrMo Alloy Machining,10pcs/set

Regular price
$47.00 USD
Regular price
Sale price
$47.00 USD
Shipping calculated at checkout.
Size
  • ISO size of the insert: SNMG1204
  • Carbide material grade: TBC10
  • Chipbreaker Type:  XCM for General purpose machining
  • cutting edge counts: 4
  • insert included angle: 80°
  • inscribed circle diameter: 12.7 mm/0.5inch
  • Theoretical cutting edge length: 12.7 mm/0.5inch
  • Insert thickness:4.76mm/0.187inch
  • available corner radius : 0.4mm/0.8mm/1.2mm
  • Application machining : turning for CoCrMo materials (forging&casting)
  • Net weight: 0.001kg

The new carbide material TBC10 is developed by ToolingBox China for difficult-to-machine materials machining, espeically for CoCrMo alloy turning. the carbide garde has excellent cutting performance and tool life, can completely replace the same kind of carbide inserts from Europe and USA.
