35mm Diameter/Metric carbide slitting saws TC10 series for non-ferrous metal

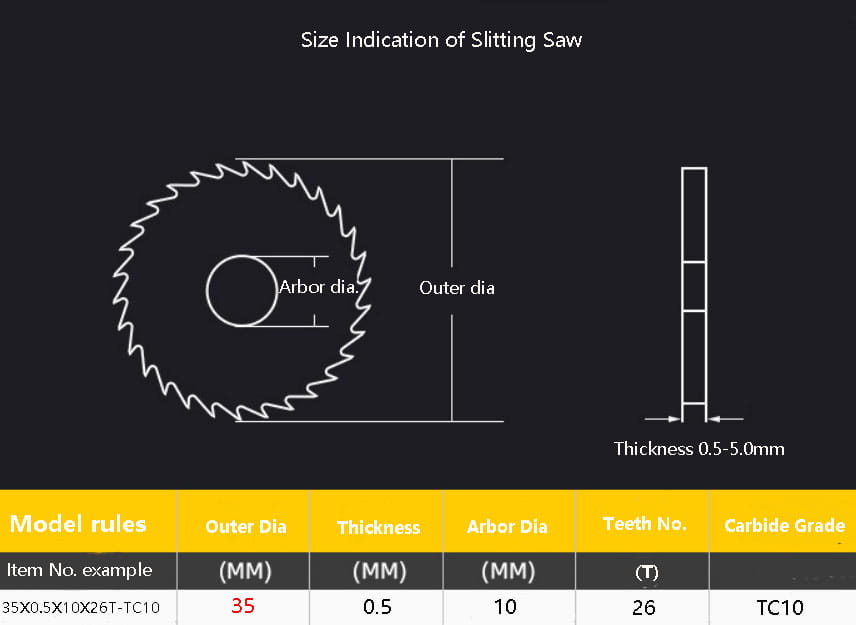

• D35mm outer diameter with metric.
• Arbor diameter 10mm;
• Available thickness 0.5mm- 3.0mm;
• Teeth No. (T):   26T, coarse
• Hardness: approx. HRA 90
• Suitable for cutting materials: wood, plastics/composites, aluminum, copper and brass

The TC10 Series solid carbide saws are designed for non-ferrous materials, such as aluminum, copper, brass ,wood, composites and plastics. The tooth form with face of this series slotting saws is similar DIN 1837/1838. The saws are ground with ultra-precision tolerances to the below standard:

• Thickness tolerances: +/- 0.01mm, special customized +/- 0.005mm;

• the tolerance of outer dia: +/- 0.05mm;

• the tolerance of inter dia: +0.01- 0.02mm;

• Runout of outer diameter: 0.03mm

• Surface of saw:  mirror

Please kindly make sure your machining materials and requirements before choosing the right carbide slitting saws with righ carbide grade. if you need help or inquiry, please feel free to email us via sales@toolingbox.store, or you can visit our official company web www.toolingbox.com for more technical support.
