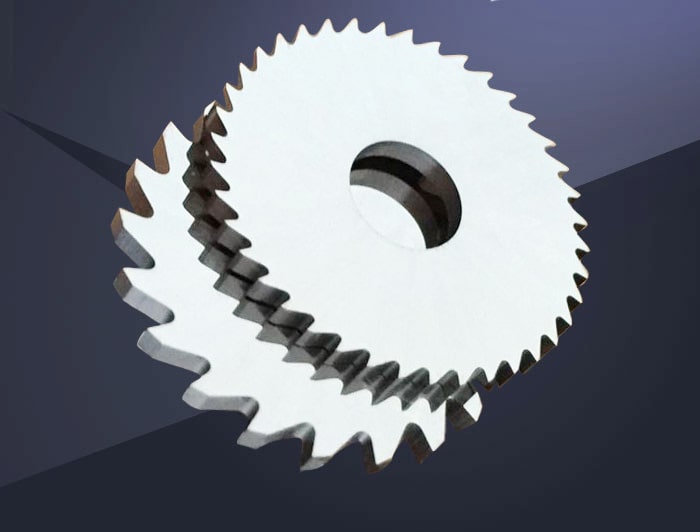

  • solid carbide slitting saw D20mm

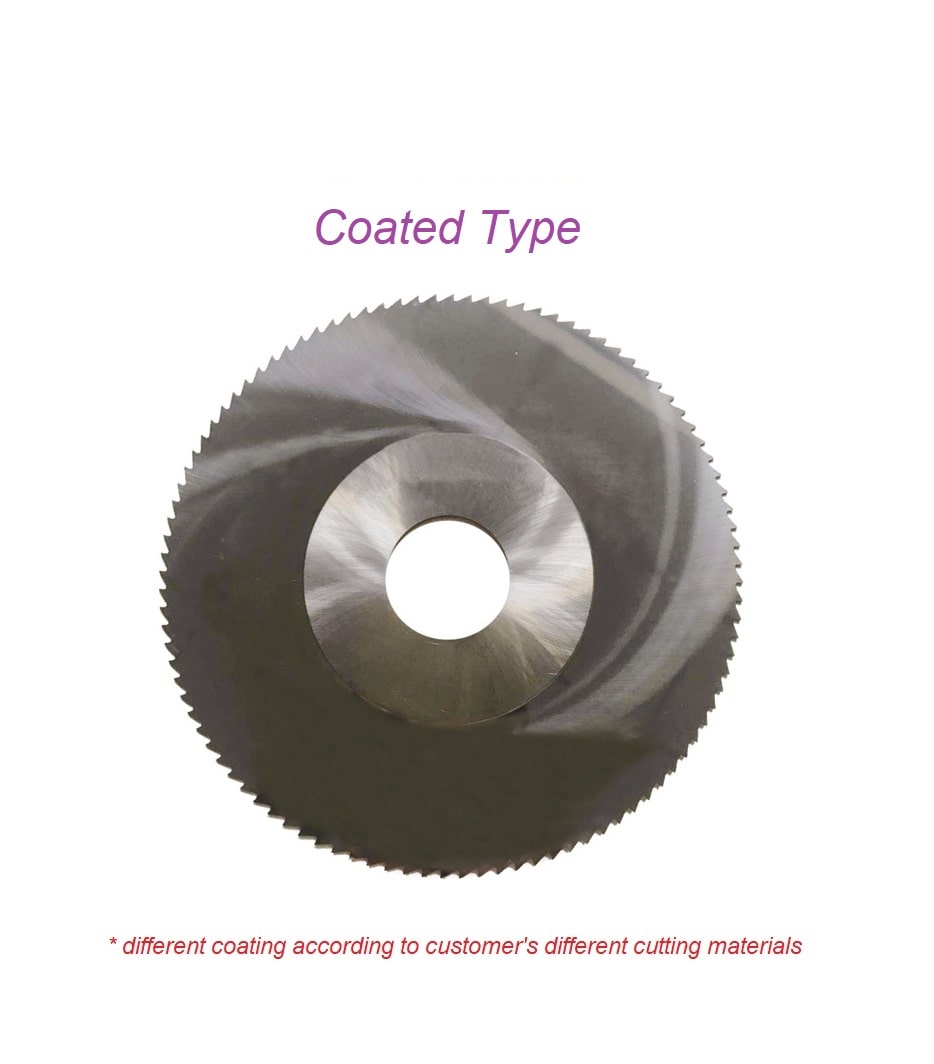

  • D20mm coated carbide slitting saws

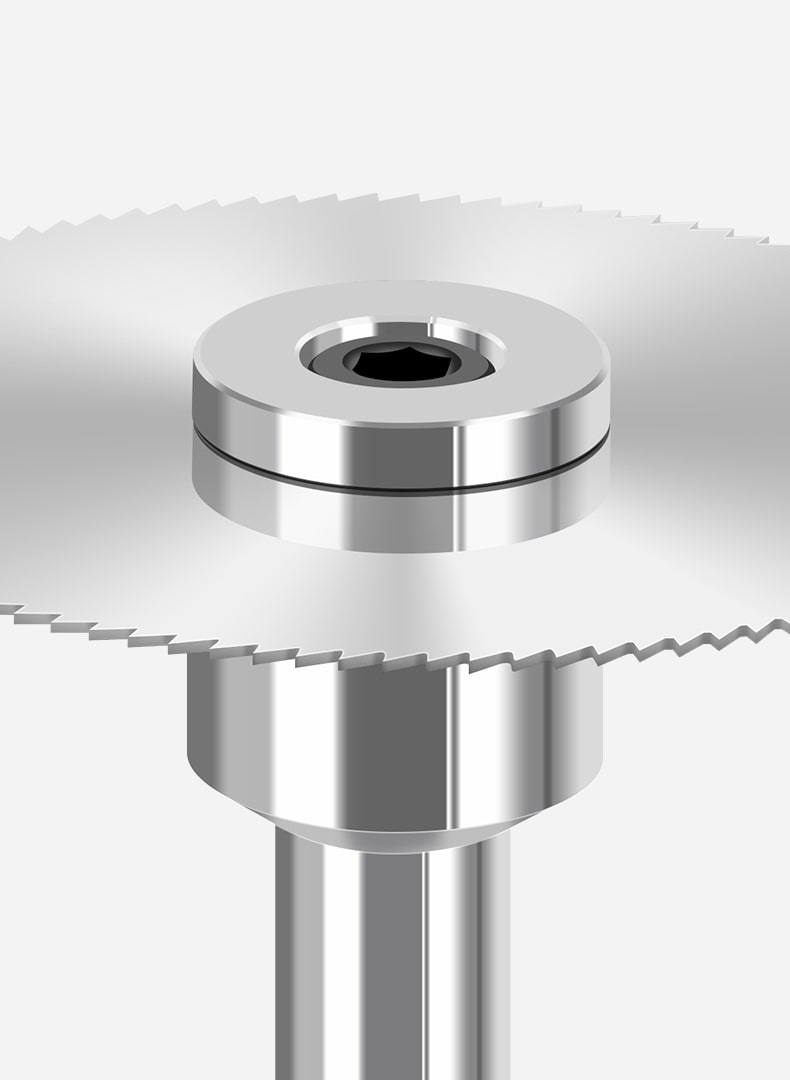

  • ToolingBox carbide slitting saw
  • ToolingBox carbide slotting saws
  • packing of ToolingBox carbide slitting saws

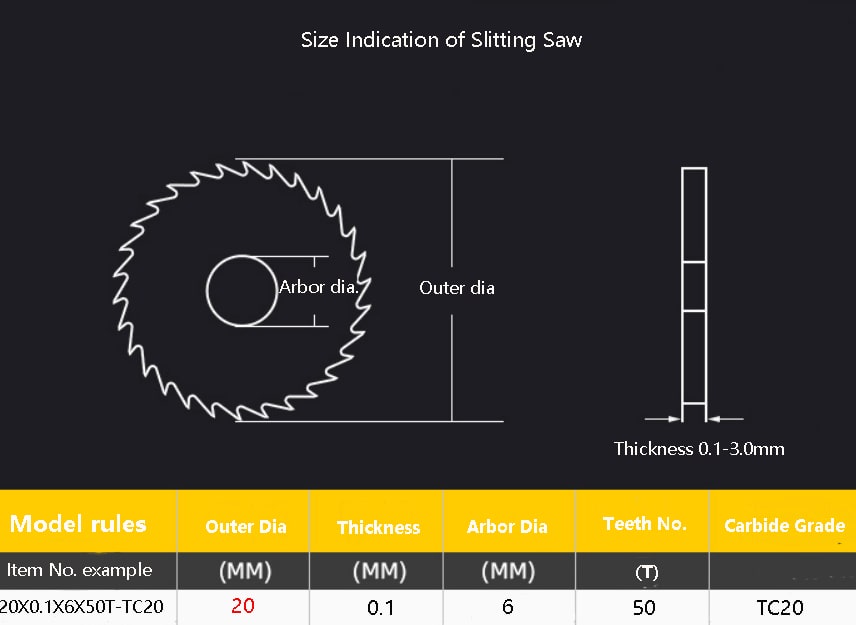

  • 20mm size of carbide slitting cutter

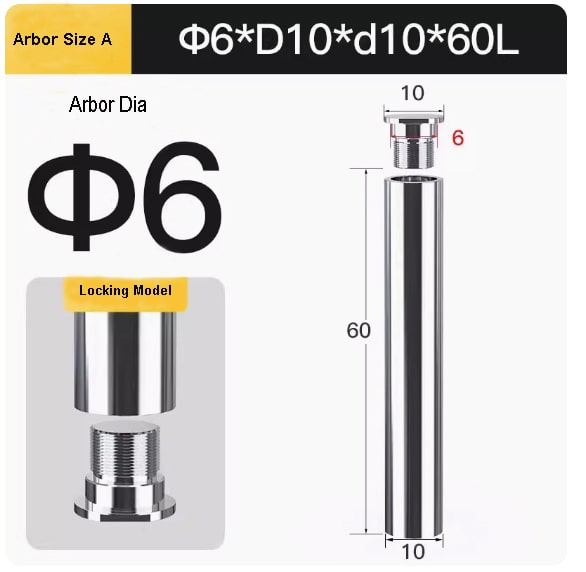

  • Arbor size D6XD10Xd10X60L

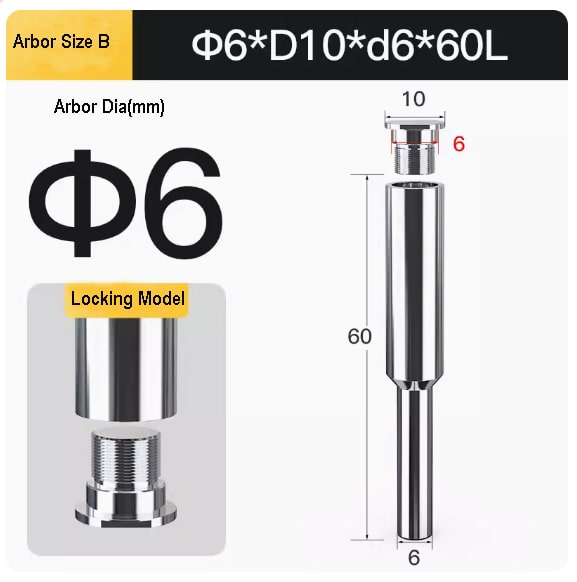

  • Arbor size of D6XD10Xd6X60L
  • suitable cutting materials of ToolingBox carbide slotting saw

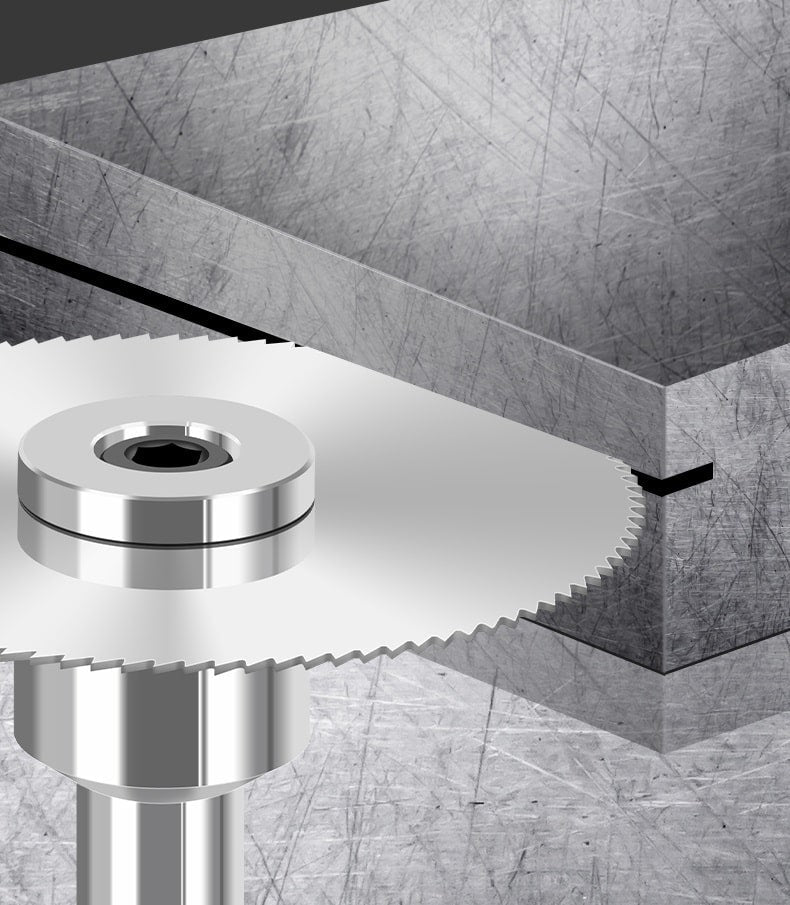

  • application for ToolingBox carbide slitting saws
1 of 10

ToolingBoxStore

20mm Diameter/Metric carbide slitting saws TC20 series for steels and Titanium alloy

Regular price
$26.99 USD
Regular price
Sale price
$26.99 USD
Shipping calculated at checkout.
Size



  • D20mm outer diameter with metric.
  • Arbor diameter 6mm;
  • Available thickness 0.1mm- 3.0mm;
  • Teeth No. (T):   50T, fine
  • Hardness: approx. HRA 92.5
  • Suitable for cutting materials: stainless steel, steel after heat treatment,cast iron,super alloys and Titanium alloy

The TC20 Series solid carbide saws are designed for difficult-to-machine materials, such as stainless steel, steel after heat treatment,cast iron,super alloys and Titanium alloy. The tooth form with face of this series slotting saws are similar to DIN 1837 and 1838. The saws are ground with ultra-precision tolerances to the below standard:

  • Thickness tolerances: +/- 0.01mm, special customized +/- 0.005mm;

  • the tolerance of outer dia: +/- 0.05mm;

  • the tolerance of inter dia: +0.01- 0.02mm;

  • Runout of outer diameter: 0.03mm

  • Surface of saw:  mirror

Please kindly make sure your machining materials and requirements before choosing the right carbide slitting saws with righ carbide grade. if you need help or inquiry, please feel free to email us via sales@toolingbox.store, or you can visit our official company web www.toolingbox.com for more technical support.
